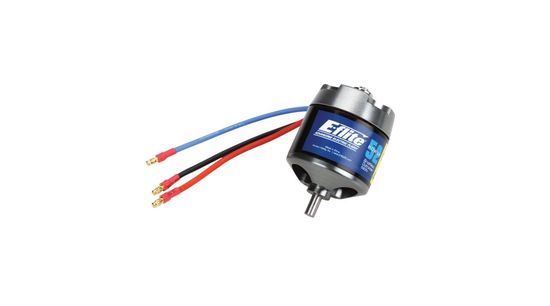

E-Flite Power 52 Brushless Outrunner Motor, 590Kv #EFLM4052A

Phone (07) 31033011 Between - 9:30am - 4:30pm

Key Features

Equivalent to a 46- to 55-size glow engine for 5.00- to 7.50 lb (2.20 – 3.40 kg) airplanes.
Ideal for 40- to 50- size 3D airplanes up to 6.00 lbs (2.70 kg)
Ideal for models requiring up to 1650 watts of power
High-torque, direct drive alternative to inrunner brushless motors
Includes mount, prop adapters and mounting hardware
Quiet, lightweight operation
External rotor design 6mm shaft can easily be reversed for alternative motor installations
High-quality construction with ball bearings and hardened steel shaft
Slotted 14-pole outrunner design

Needed To Complete

80-Amp brushless ESC
4S–6S Li-Po or 14- to 16-cell Ni-MH/Ni-Cd Battery
14 x 7 to 12 x 8 Propeller

Overview

Designed to deliver clean and quiet power, the Power 52 Brushless Outrunner Motor, 590Kv is designed for 40- to 50-size sport and scale airplanes, 40- to 50-size 3D airplanes, as well as models requiring up to 1650 watts of power.

Adjustable Timing:	No
Cells:	14â20 Ni-MH/Ni-Cd or 4â6S Li-Po
Connector Type:	4mm Bullet
Idle Current (Io):	2.3A @ 18.5V
Input Voltage:	14.8â22.2V
Input Watts:	Up to 1650
Motor Type:	Brushless Sensorless Outrunner
Overall Diameter:	2.00 in (50mm)
RPM/Volt (Kv):	590
Recommended Prop Range:	4S: 14 x 7 - 15 x 8; 5S: 13 x 8 - 15 x 7; 6S: 11 x 10 - 12 x 8
Recommended Speed Control:	80-Amp
Resistance:	0.016Î©
Shaft Diameter:	6mm
Shaft Length:	3.1 in (80mm)
Size:	Equivalent to or surpassing the power of a 50- to 55-size 2-stroke glow engine

SKU	EFLM4052A
Barcode #	0605482053683
Brand	E-Flite
Shipping Weight	0.6000kg
Shipping Width	0.080m
Shipping Height	0.080m
Shipping Length	0.100m
Shipping Cubic	0.000640000m3
