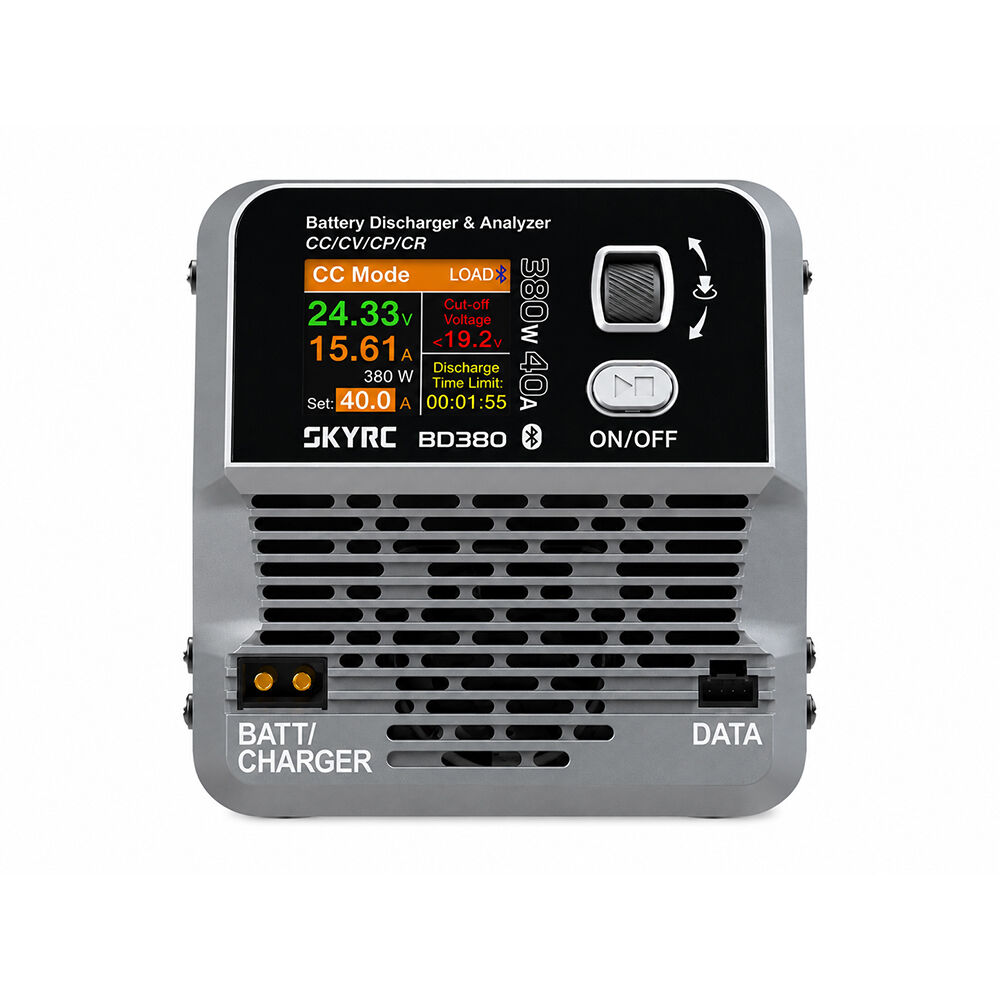

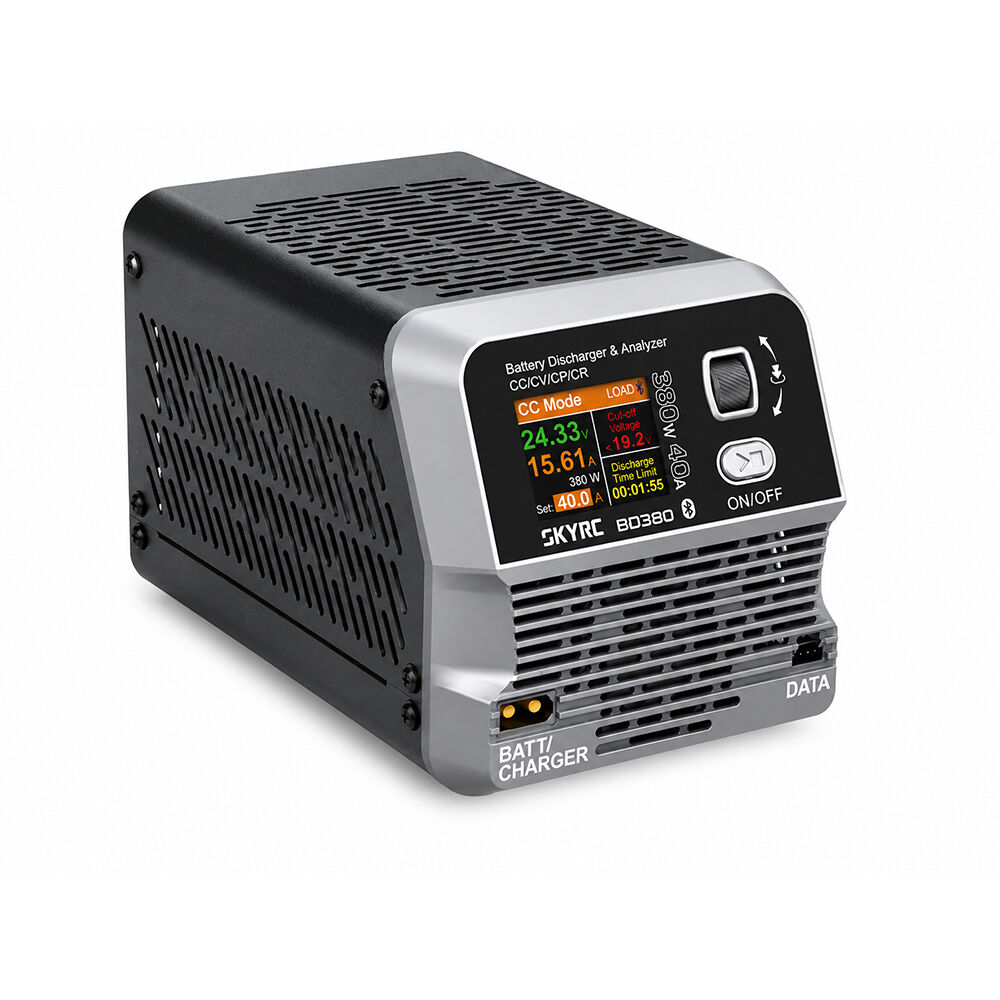

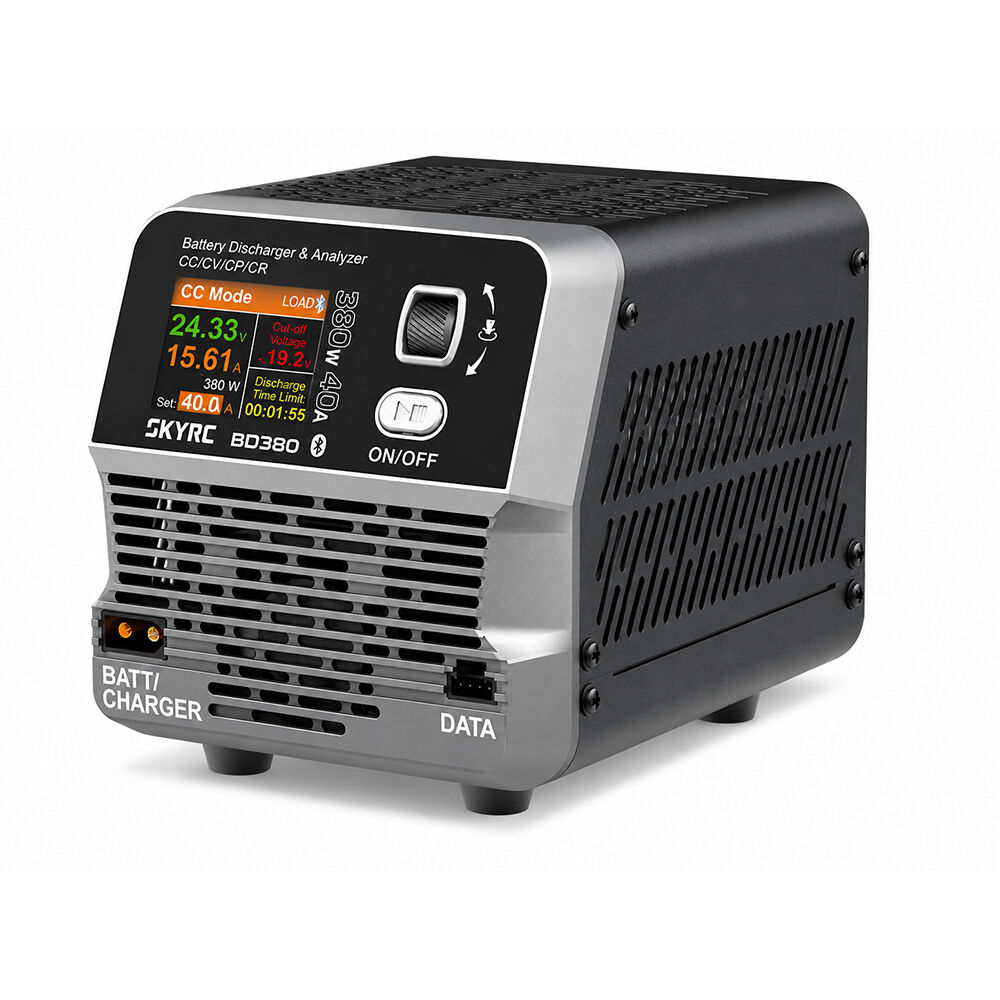

The SkyRC BD380+ is a powerful 380W battery discharger and analyzer designed for RC battery testing, conditioning and performance management. With up to 40A discharge current and support for CC, CV, CP and CR operating modes, it is ideal for checking battery capacity, monitoring discharge performance and maintaining high-performance RC packs.

The BD380+ can begin discharging directly once connected, without requiring an external power supply. When paired with compatible SkyRC chargers such as the D200neo or T1000, it can improve battery management efficiency and support high-current charging and discharging workflows.

Built-in Bluetooth allows connection to the SkyRC app for convenient monitoring of key battery data, including capacity, voltage and power curves. It is also compatible with SkyRC Charger Master software, allowing users to view real-time discharge curves and identify weak or poor-quality batteries.

A clear colour screen, scroll wheel and button interface make operation simple, while built-in overload, overcurrent and overtemperature protection help protect the unit and connected batteries during use. Advanced cooling with high-efficiency fans, copper heat pipes and aluminium fins helps maintain stable performance under load.

Features

• 380W maximum discharge power
• Up to 40A discharge current
• CC, CV, CP and CR discharge modes
• Built-in Bluetooth app support
• Compatible with SkyRC Charger Master software
• Works with compatible SkyRC chargers including D200neo and T1000
• Real-time voltage, capacity and power curve monitoring
• Colour display with easy menu navigation
• Overload, overcurrent and overtemperature protection
• High-efficiency cooling system

Specifications

Input voltage: DC 3–30V
Discharge power: 380W max
Discharge current: 0.3A–40.0A
Battery connector: XT60
Modes: CC, CR, CP, CV
CC mode: 0.3A–40.0A
CR mode: 1–100Ω
CP mode: 1–380W
CV mode: Max 180W
Screen: 1.77" TN colour display
Resolution: 240 x 320 pixels
Shell material: PC-ABS V0
Size: 159.7 x 110 x 121.6mm
Weight: Approx. 1100g
Working temperature: 0°C–40°C
Storage temperature: 10°C–70°C
