TRAXXAS 3016: XL-10 Electronic Speed Control

Phone (07) 31033011 Between - 9:30am - 4:30pm

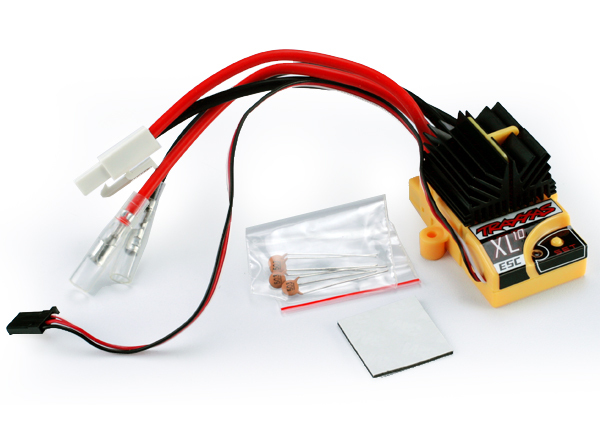

This is the XL-10 Forward and Reverse Electronic Speed Control from Traxxas.

This is an Optional part for:

1/10 Bandit XL-5 (2405)
1/10 Stampede 2wd (Mechanical Speed Control) (3606)

Features:

EZ-Set pushbutton setup
Land Version with Forward, Reverse and Brake
Efficient low loss MOSFET design with heavy gauge low loss wire
Thermal shutdown protection with 150A rated peak circuit
Traxxas molex connector

Includes

One (1) Electronic Speed Control

Specifications:

On Resistance Forward: 0.006 Ohms
On Resistance Reverse: 0.006 Ohms
Peak Current-Fwd/Rev: 150A/150A
Braking Current: 75A
Continous Current: 30A
BEC Voltage: 6.0VDC
BEC Current: 1000mA
Power Wire: 14AWG/ 5"
Input Harness Type: 26AWG/ 9"
Transistor Type: MOSFET
PWM Frequency: 2000Hz
Thermal Protection: Thermal Shutdown
Single Button Setup: Yes
Motor Limit: 10T (540 Size)
Input Voltage: 4-7 Cells (4.8V to 8.4V DC)
Weight: 2.26oz
Profile Selection: 100% FWD, 100% Brakes, 100%REV
100% FWD, 100% Brakes, No REV
100% FWD, 100% Brakes, 25% REV

Vehicle models vary! .. We DO NOT guarantee this will fit the vehicle specified in this listing!!

Verify that this item is appropriate for your vehicle. Consult your manual or vehicle manufacturer.

Verify vehicle fit-ment before purchase.

SKU	3016
Brand	Traxxas
Shipping Weight	0.2000kg
Shipping Width	0.100m
Shipping Height	0.080m
Shipping Length	0.100m
Shipping Cubic	0.000800000m3
