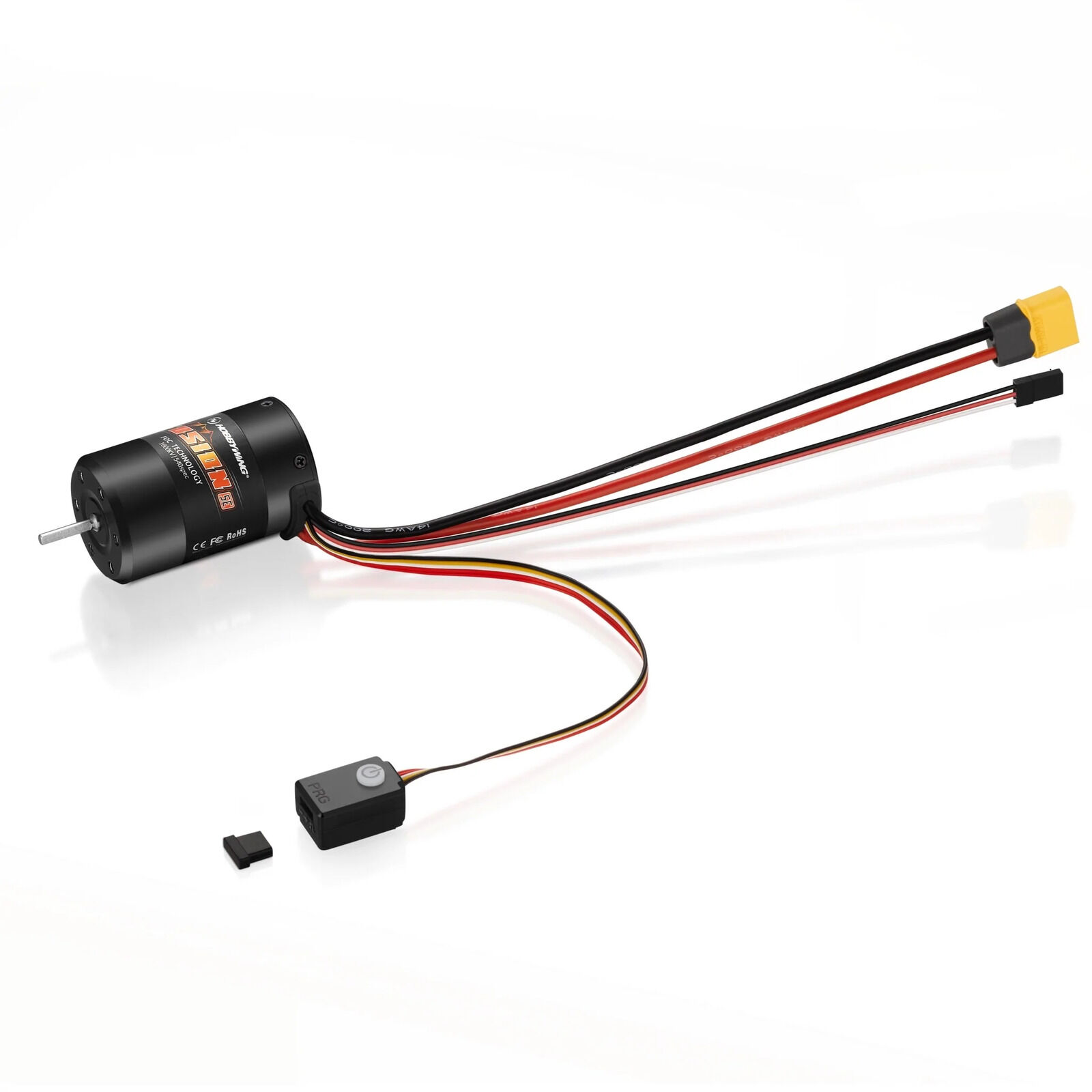

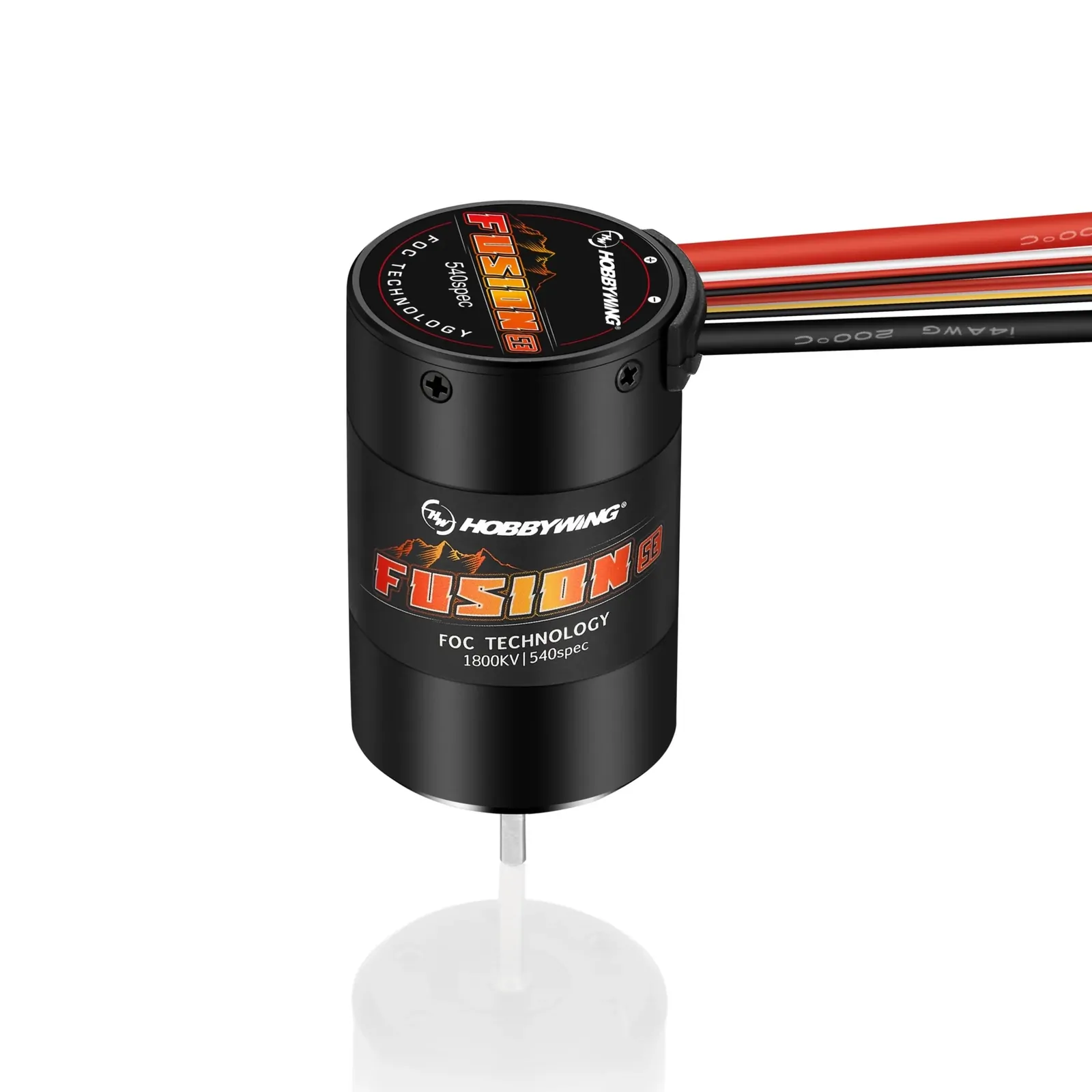

Introducing the QUICRUN Fusion SE for Crawlers from Hobbywing.  A combined speed control and motor package.

Aesthetically Appealing

The Fusion SE provides an integrated space-saving design for builders. With a 58mm length, the Fusion SE has been shortened slightly to allow it to fit into more vehicles.

FOC Powered

With proven design heritage FOC has been a game changer for the crawling segment. The extreme efficiency operates at lower temps and provides extended runtimes. The nearly silent operation provides amazing power and response at all speeds while providing extremely low RPM control. Compared to normal brushless, FOC systems provide a dramatic increase in response and power delivery.

The smart torque output control feature of the built-in FOC ESC ensures unmatched downhill and uphill driving. The ESC can automatically adjust the motor output to RPM to match the driver inputs.

Intelligent Torque Output

Intelligent Torque Output is a smart management system that allows the ESC to adjust the motor for inclines or descent under any load to match the throttle.

U- matched hill holding

With 8 levels of drag brake force (Power) and 9 levels of Drag Brake Rate, drivers can fine-tune their vehicle’s hill-holding power and general driving. Overall, drag brakes can be 2 times stronger than normal brushless setups.

Designed for Durability

Silicon rubber gaskets, electronic buttons, and quality hardware ensure a long life for the Fusion SE. Made to take the abuse and conditions of daily RC bashers.

Ready for all weather and track conditions.
IP-67 waterproof rating ensures the Fusion SE has protection from water, dust, and about anything else that gets thrown at it. Designed to withstand all conditions time and time again.

Note: The IP67 protection level mentioned above is splash-resistant, water-resistant and dust-resistant under normal use, and is tested under controlled laboratory conditions. Its effect is in the GB / T 4208-2017 (domestic) / IEC 60529 (overseas) standard to IP67 level. Splash, water and dust resistance are not permanently effective, and the level of protection may decline due to aging. Do not soak for a long time to avoid damaging the product.

Specifications

Scale - 1/10th
Brushed/Brushless - BL
Sensored/Sensorless - SD
Waterproof - Waterproof
Cont./Peak Current - 40A
Input Voltage - 2-3S Lipo/6-9 Cell NiMH
BEC Output - 6V/7.4V@4A、6A peak
Motor KV - 1200KV & 1800KV
Diameter/length of Motor - 36mm / 58.1mm
Shaft diameter / exposed shaft length - 3.175mm / 16.5mm
Motor Poles - 4

Wires & Connectors

Input Wires - Red-14AWG-200mm*1 / Black-14AWG-200mm*1
Input Connectors - XT60
(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via

SET Button on ESC - Not Supported
LED Program Box - Supported
LCD Program Box - Not Supported
OTA Programmer - Not Supported
Program Port - Independent programming interface(switch position)

Firmware

Firmware Upgrade - Not Supported

Size & Weight

Size - 36X58.1mm
Weight - 201g (including wires & connectors)

Applications

Vehicles - 1/10 rock crawlers
