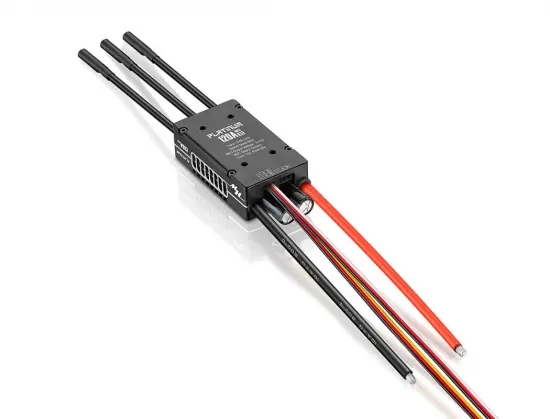

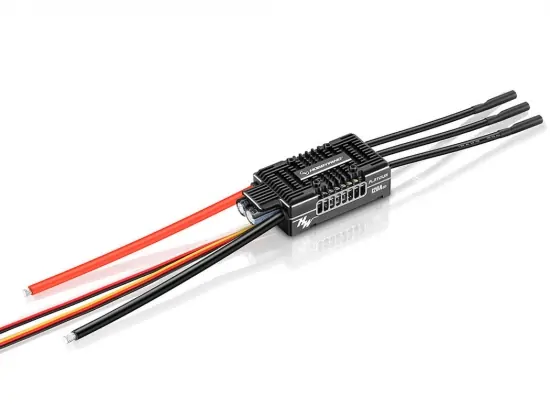

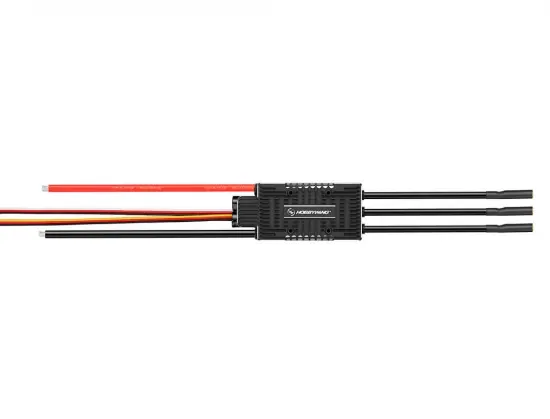

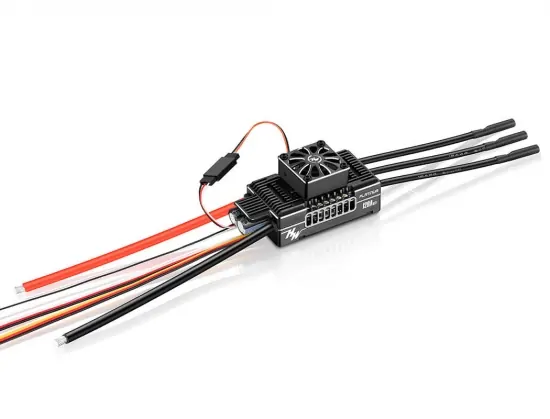

The Hobbywing Platinum 120A V5 Speed Control (HW30203402) is a brushless ESC for regular-voltage systems, supporting 3–8S LiPo power. It delivers 120A continuous and 150A peak current, backed by a robust switch‑mode BEC rated at 5–12V, 10A continuous (30A peak). Designed for high-performance RC applications, it brings telemetry connectivity and convenient programming options to advanced helicopter and fixed‑wing models.

With a separate programme port, support for LCD and OTA programming, and firmware upgrade capability, the Platinum 120A V5 streamlines setup and tuning. Telemetry links with popular ecosystems help monitor key parameters in flight.

Key Specifications

  • Type: Brushless; regular-voltage ESC
  • Input voltage: 3–8S LiPo
  • Continuous/peak current: 120A / 150A
  • BEC output: Switch mode, 5–12V; 10A continuous, 30A peak
  • Firmware upgrade: Supported
  • Size: 83.2 × 37.1 × 22.5 mm (without fan)
  • Weight: 150.4 g (with wires, no fan)

Programming & Telemetry

  • Programming via transmitter: Not supported
  • Programming via LED Program Card: Not supported
  • Programming via LED Program Box: Not supported
  • Programming via LCD Program Box: Supported
  • Programming via OTA Programmer: Supported
  • Separate programme port: Yes
  • Telemetry function: Mikado VBar and Futaba S.Bus2

Wiring & Connectors

  • Input wires: Red 10AWG 150 mm ×1; Black 10AWG 150 mm ×1
  • Output wires: Black 12AWG 100 mm ×3
  • Input connectors: None
  • Output connectors: 4.0 mm gold connectors (female)

Suggested Compatibility

  • 420–520 class electric helicopter (main blade length 420–520 mm)
  • Fixed‑wing models
SKU HW30203402
Barcode # 0088718523325
Brand HobbyWing
Shipping Weight 0.3000kg
Shipping Width 0.100m
Shipping Height 0.030m
Shipping Length 0.150m
Shipping Cubic 0.000450000m3
