Gasoline power for your .90-1.20 aircraft

An investment in O.S. gasoline power quickly pays for itself in fast starts, higher power and more flights from your fuel budget. For the many planes that use 2-stroke .60-.91 or 4-stroke 1.20 glow engines, the GT22 – the third gasoline engine available from O.S. – is the perfect choice. It cranks out nearly 10% more power than other 2-stroke gasoline engines of similar size! Throughout the GT22, the fit and finish are outstanding – always delivering the same high performance as when you first installed your brand new, hand-crafted, quality inspected O.S. engine.

Pitts style muffler has been reinforced at seam, bend and mounting bolt locations for strength.
Redesigned for even easier starting, the IG-02 electronic ignition system handles 4-6 cell NiCd/NiMH or 2-cell LiPo/LiFe batteries.
Includes single prop nut with locking nut.

Uses beam mounting for easy installation in planes designed for glow power.
Rear-mounted Walbro carburetor is custom-designed for the GT22 – a choke rod guide has also been integrated into the crankcase for effortless setup.

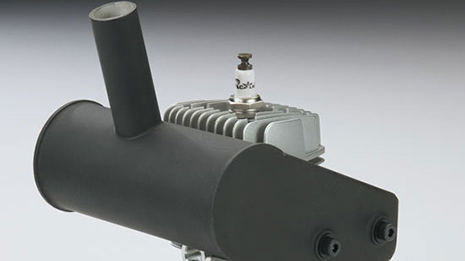

GT22 Muffler

The GT22 Pitts muffler is built to last, with reinforced mounting bolt holes and webbing at high-stress points.

GT 22 Gas Engine With Muffler

Complete package includes engine, muffler, electronic ignition module, CM-6 spark plug, muffler gasket and bolts.

Product Specifications

Engine (Only) Weight	26.86 oz (761.6 g) w/o muffler
Muffler Type	2-piece aluminum
Product Height	3.1" (140.5mm) bottom of mounting tab to top of muffler
Prop Range	16 x 8 - 17 x 8
RPM Range	1,800 - 9,000
Benchmark Prop	15x10
Displacement	1.35 cu in (22 cc)
Oil Type & Content	50:1 mix ratio 2-cycle
Product Length	5.5" (139.5mm) from carburetor to front of drive hub
Bore	1.26" (32mm)
Crankshaft Type	Threaded
Power Type	Gas
Plug Type	CM-6 spark plug
Stroke	1.08" (27.5mm)
Cylinders	Single
Product Width	2.7" (70mm) at mounting tabs
Crankshaft Threads	UNF-2A 5/16-24
Ignition Weight	3.70 oz (105 g)
Muffler Weight	4.68 oz (132.6g)

SKU	OSM38200
Barcode #	4531028023024
Brand	OS Engines
