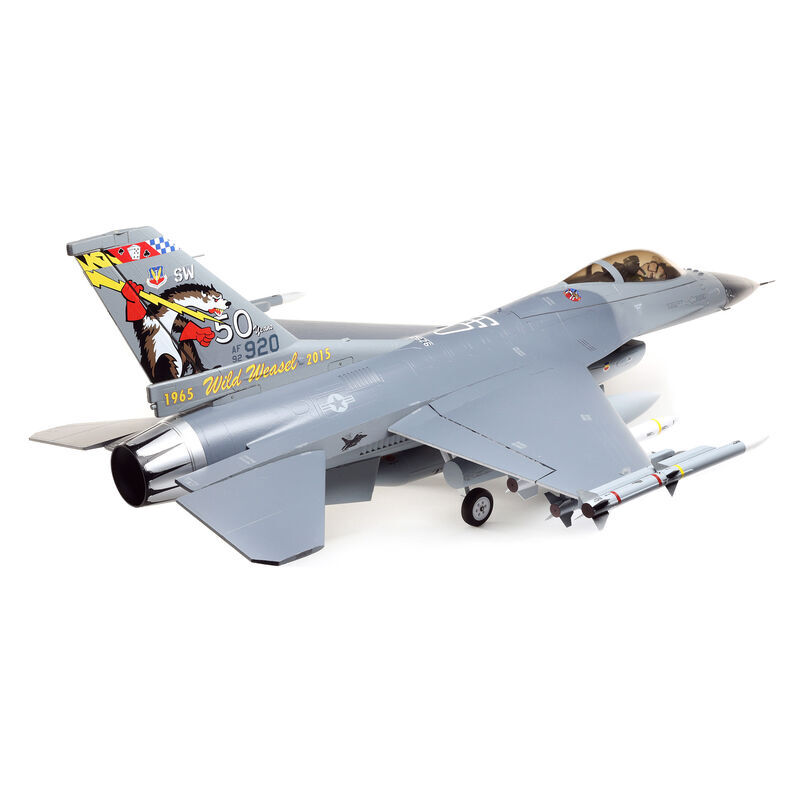

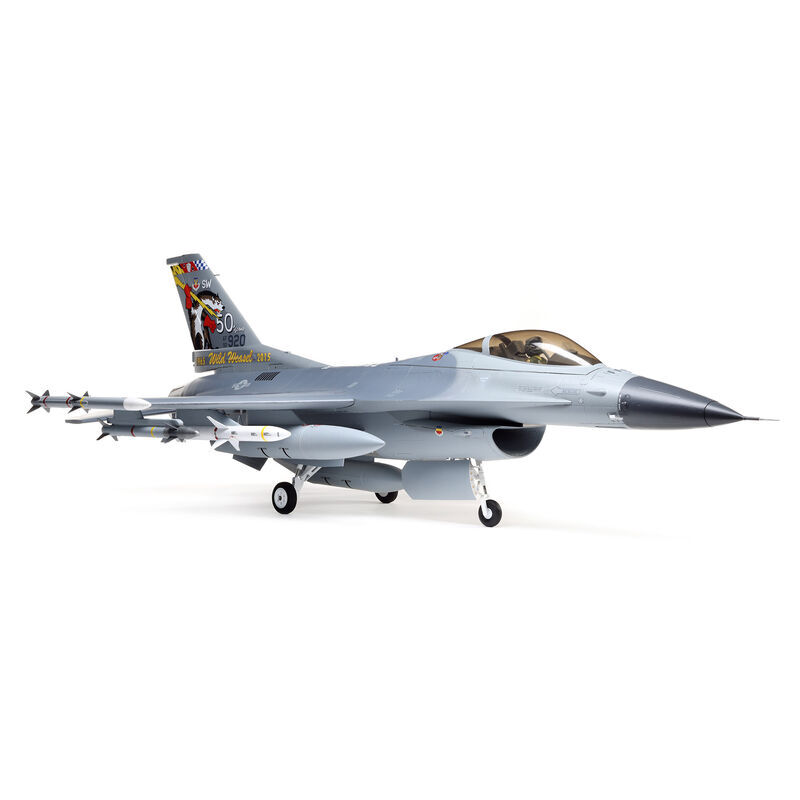

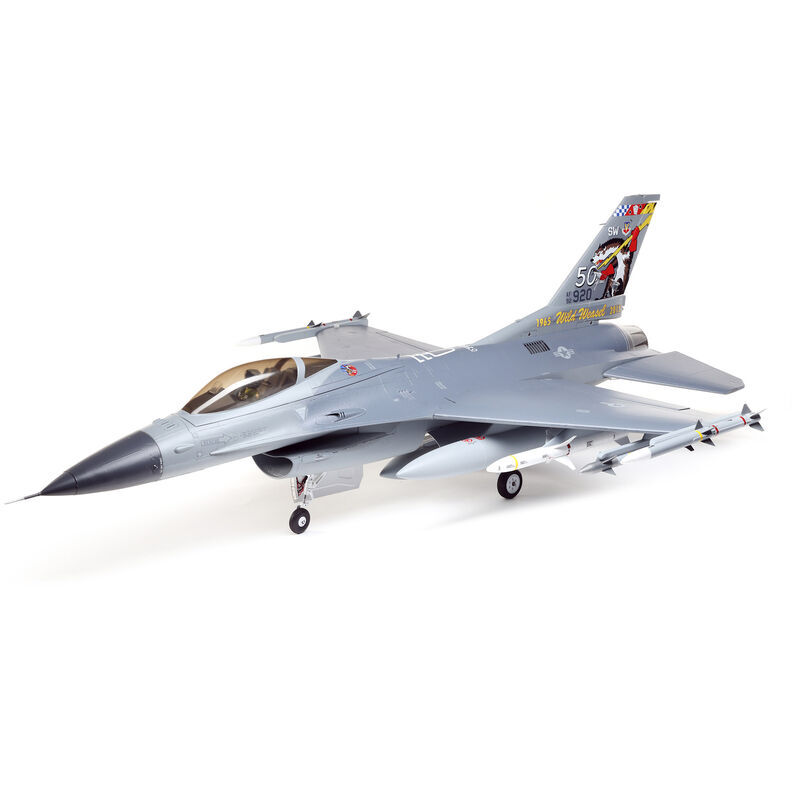

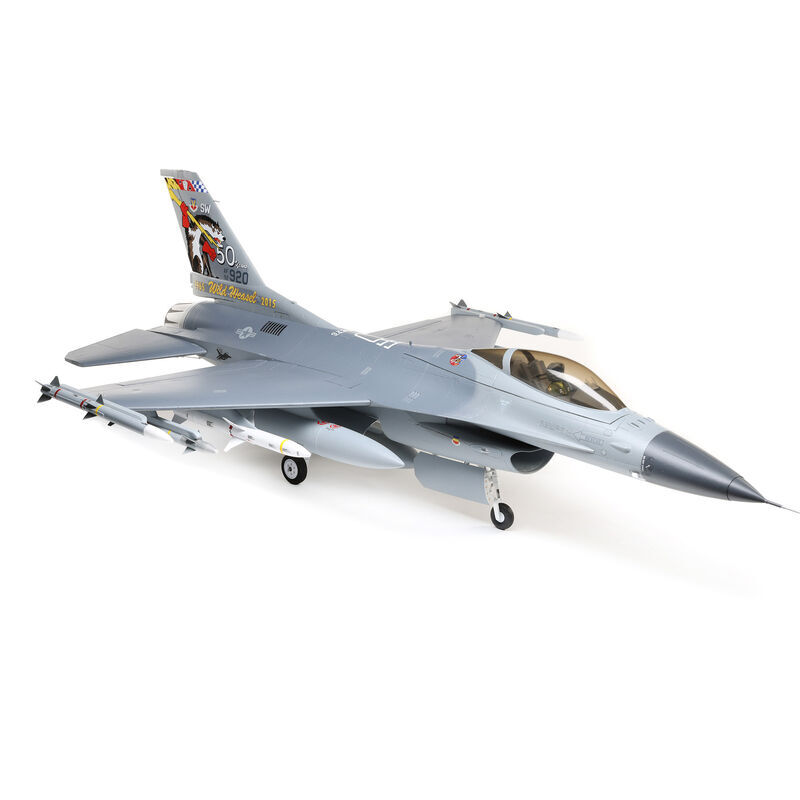

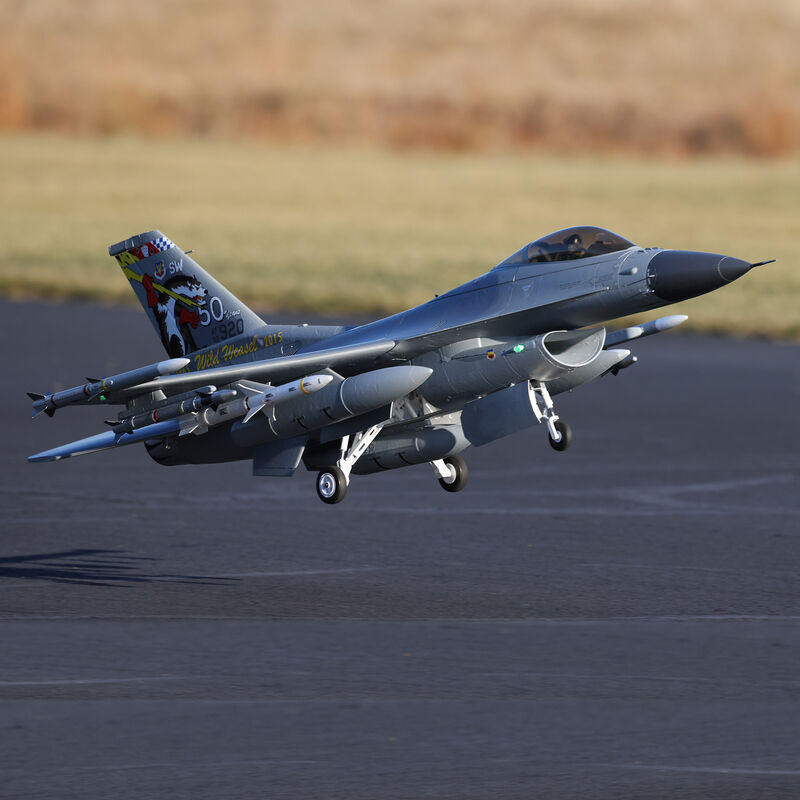

E-Flite F-16 Falcon 80mm EDF Jet Smart BNF Basic w/ SAFE Select #EFL87850

Product Details
In The Box
(1) E-flite® F-16 Falcon 80mm EDF
(1) Spektrum™ Avian™ 100A Brushless Smart ESC (installed)
(1) 2100Kv Brushless Inrunner Motor (installed)
(1) V2 80mm 12-Blade EDF unit (installed)
(9) Digital, Metal-Geared Servos (installed)
(1) Spektrum™ AR637TA 6-Channel Receiver (installed)
(1) Electric Tricycle Retractable Landing Gear (installed)
(1) Product Manual

Needed to Complete
(1) Full-range 6-7+ Channel Spektrum™ DSMX®/DSM2® Compatible Transmitter
(1) 6S 22.2V 4000–7000mAh 30+C LiPo with EC5™ or IC5® Connector
(1) Compatible LiPo Charger

Air and Scale Superiority
The F-16 Fighting Falcon was originally developed for the U.S. Air Force and approved for production more than 40 years ago. This multirole fighter’s advancements in technology and capabilities have kept it active to the present day with air forces worldwide. The E-flite® F-16 Falcon 80mm EDF (Electric Ducted Fan) is an Extra Scale model based on the single seat F-16C variant which entered production in 1984. The F-16C brought improved cockpit avionics and radar for all-weather capability with beyond-visual-range AIM-7 and AIM-120 air-to-air missiles. This replica is nearly as large as other 90mm EDF models, yet the efficient power system delivers better overall performance and longer flight times when using common 6S 4000–7000mAh batteries. The 3-tone gray finish is easy to customize using your choice of the included squadron markings while Extra Scale details and functional features — including the most scale-like landing gear installed on an F-16 EDF model yet — combine to deliver an unmatched flying experience!

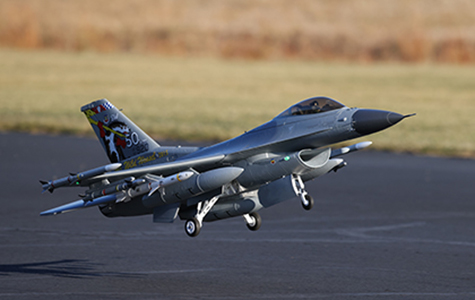

High Performance Fighting Falcon
The E-flite® F-16 Falcon 80mm EDF jet is the Smartest, most detailed and best handling high-performance replica of the world-renowned fighter yet! Extra Scale details, including molded-in panel lines, simulated antennas, indicators, sensors, optional-use ordnance, and more take realism to the next level. Functional Extra Scale features include LED navigation and landing lights, full-flying stabs, sequenced gear doors plus the most scale-like retractable landing gear installed on an F-16 EDF model yet. Both versions include nine factory-installed digital, metal-geared servos, and with the ARF Plus version you can install the compatible receiver and an 80mm EDF power system of your choice — from another similar class model or using other compatible components. The BNF® Basic version comes factory-equipped with a Spektrum™ AR637TA receiver that includes exclusive AS3X® and optional-use SAFE® Select technologies, along with a V2 12-blade 80mm fan, high-power 2100Kv brushless inrunner motor and a 100-amp Avian™ Smart ESC to deliver fantastic performance with popular 6S 4000–7000mAh LiPo batteries. This efficient power system provides better performance and longer flight times than the 6S-compatible power systems used in similar sized models powered by 90mm EDFs. The ESC and receiver supply real-time battery voltage, motor RPM and other telemetry data via compatible transmitters. Constructed of durable, fully-molded EPO, this F-16 assembles without glue and can be ready to fly in less time than other similar class models!

Video Overview

Features

Scale replica of the world-renowned fighter flown by the U.S. and numerous allied air forces
The Smartest, most detailed and best handling high-performance F-16 EDF (Electric Ducted Fan) jet model yet

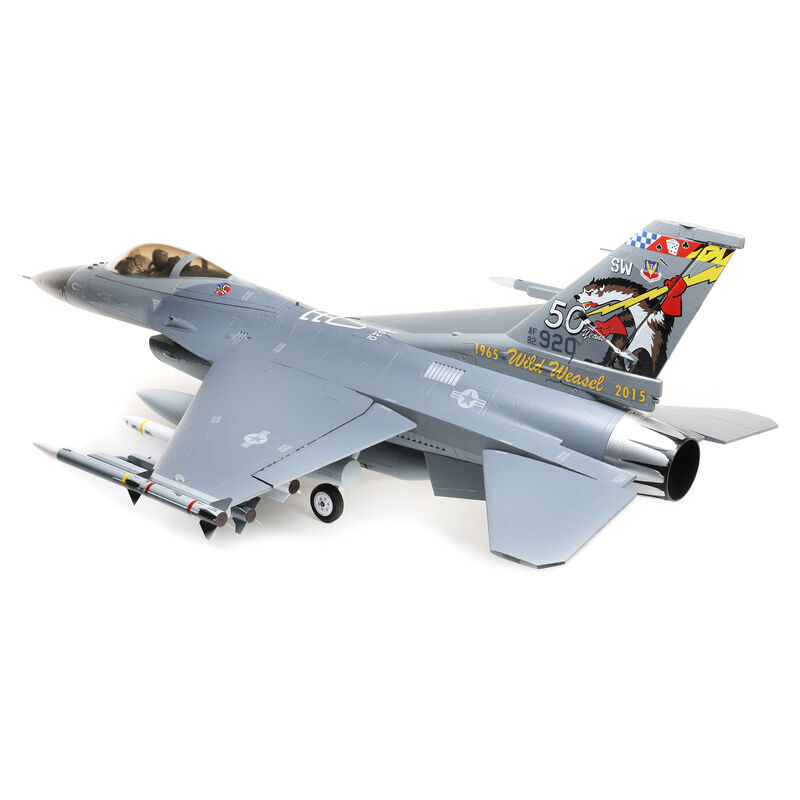

Factory-applied 3-tone gray trim scheme with decal sheets to apply four different choices of squadron markings
Extra Scale details including molded-in panel lines, simulated antennas, indicators, sensors and much more
Functional Extra Scale features including LED navigation and landing lights, full-flying stabs and more

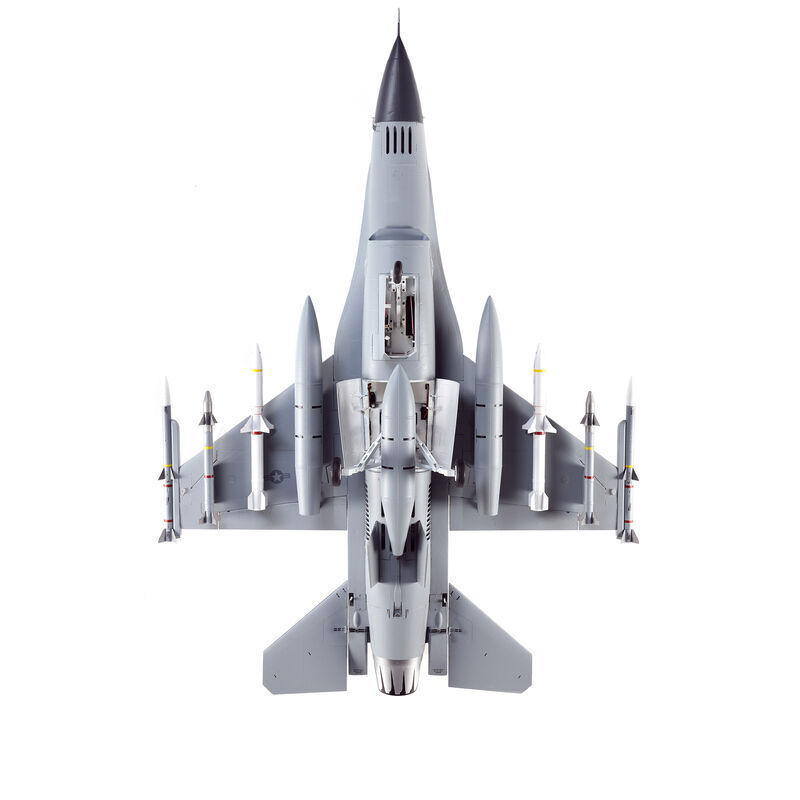

Includes optional-use and easy to install/remove ordnance including six missiles and three drop tanks
V2 12-blade 80mm fan delivers excellent top speed and vertical performance plus turbine-like sound
Factory-installed, high-power 6S-compatible 2100Kv brushless inrunner motor and 100-amp ESC
100-amp Spektrum™ Avian™ Smart ESC provides real-time battery voltage, motor RPM and other data via compatible receivers and transmitters
Fits a wide range of 6S batteries from 4000-7000mAh to deliver class-leading flight times and performance
Spektrum™ AR637TA receiver with full-range telemetry and industry-leading DSMX® technology

Easier to fly with innovative and optional-use SAFE® Select flight envelope protection
The unmatched stability and locked-in feel of exclusive AS3X® technology
Nine factory-installed digital, metal-geared servos with ball-link equipped linkages
Electric retracts with scale-like painted, articulated and shock-absorbing struts
Sequenced, servo-operated nose and main gear doors with molded in details
Plastic capped strakes, hatch edges and opening for added durability to prevent damage and paint chipping
No glue required for assembly and can be ready to fly in less time than it takes to charge a battery
Two-piece wing that bolts into place and a magnetically secured nose cone

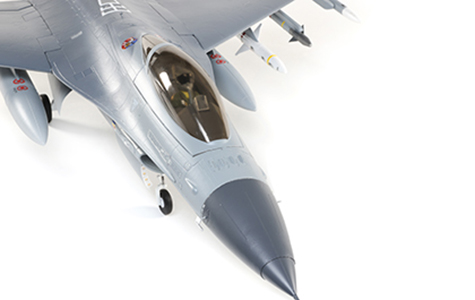

Convenient top hatch with clear canopy, cockpit detail and a pilot figure
Optional simulated afterburner LED ring available separately
Extremely durable, fully molded EPO airframe

Exclusive Technologies

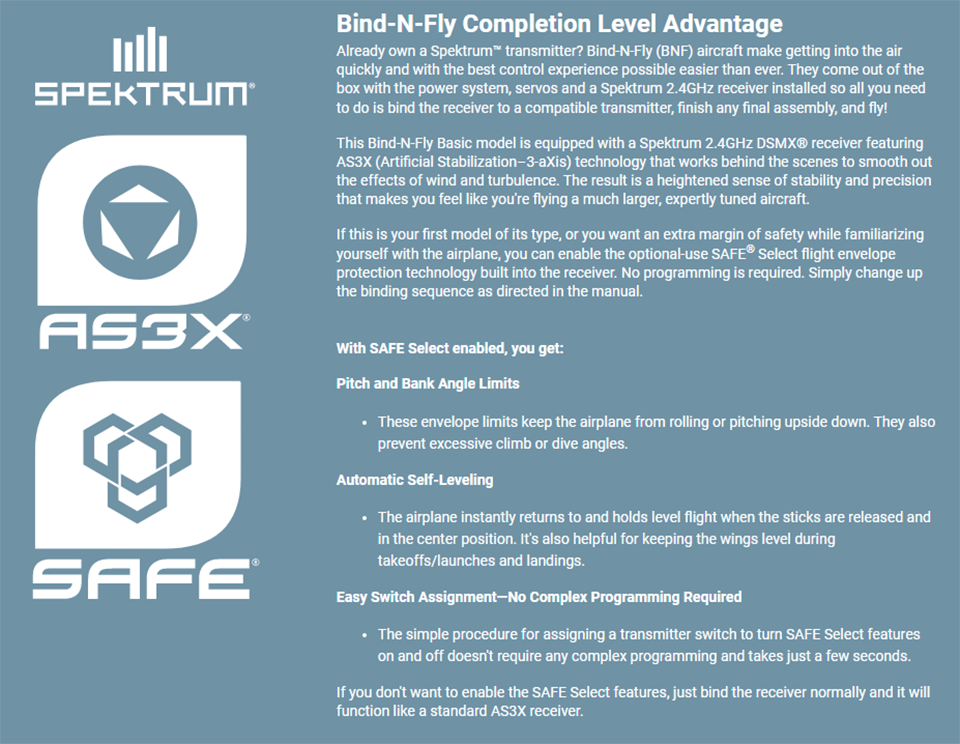

This high-performance F-16 Falcon model is equipped with exclusive Spektrum™ AS3X® and SAFE® Select technologies. AS3X works behind the scenes to smooth out the effects of wind and turbulence to deliver a locked-in feel that makes it seem like you're flying a much larger airplane. Optional-use SAFE Select offers pitch and bank angle limits along with automatic self-leveling that can be turned on and off at the flip of a switch to make this an easier to fly Falcon! And if you don't want to enable the SAFE Select features, simply bind the receiver normally and only AS3X will be active.

High-Performance EDF

The V2 12-blade 80mm fan, high-power 2100Kv brushless inrunner motor and 100-amp ESC combine with your 6S 4000–7000mAh 30+C LiPo battery to deliver great vertical performance and a fantastic speed range with virtually instantaneous throttle response. This efficient power system also delivers better performance and longer flight times than the 6S-compatible power systems used in 90mm class models. But what makes the experience truly rewarding is the fantastic sound it produces – it's almost like a real turbine.

Extra Scale Details

Functional Extra Scale Features

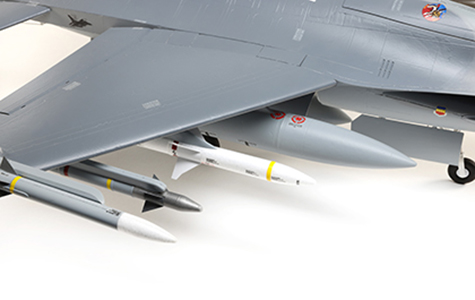

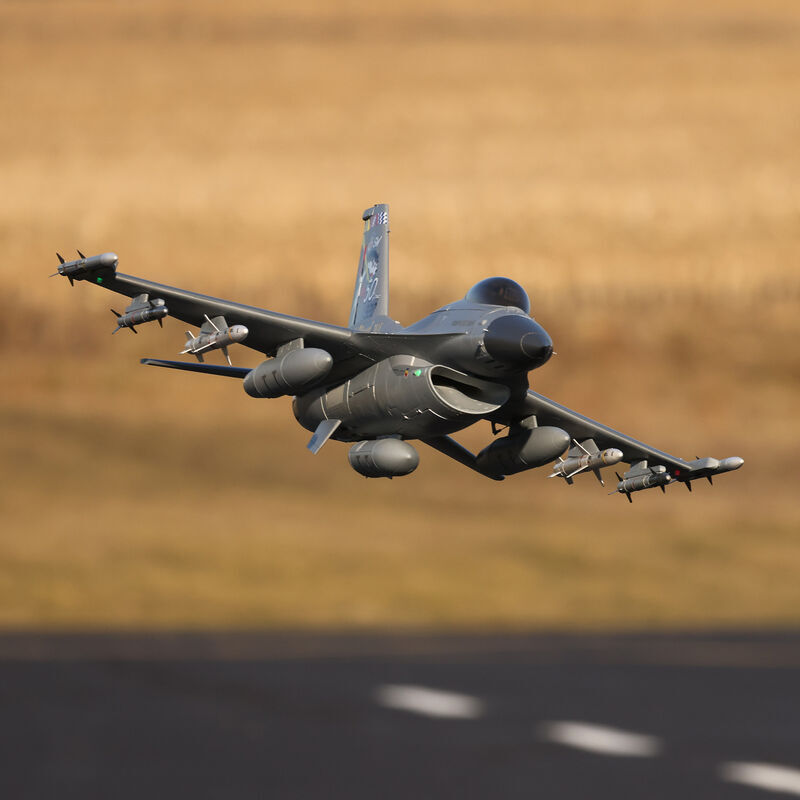

The F-16 Falcon 80mm EDF features an accurate outline and an abundance of Extra Scale details including molded-in panel lines and hatches, simulated antennas, indicators, sensors and much more. And, unlike other similar class models that require you to spend more to buy them separately, it includes a full complement of optional-use and easy to install/remove ordnance including six missiles plus three drop tanks.

Factory-installed LED navigation and landing lights, full-flying stabs, control surfaces with pocket hinges – even sequenced main gear and nose gear doors – are functional Extra Scale features that take your experience to another level. An optional simulated afterburner LED ring is also available separately to further enhance your experience.

Extra Scale Gear

Detailed Durability

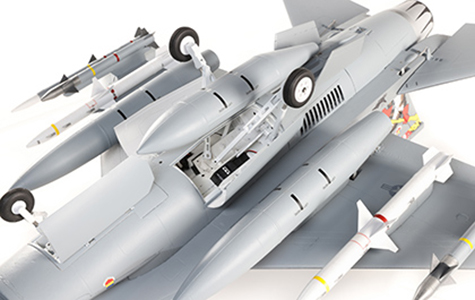

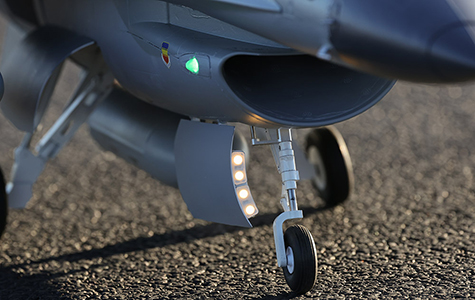

The reliable, factory-installed electric retracts are equipped with durable metal components including Extra Scale painted, articulated and shock-absorbing struts. It's the most scale-like landing gear installed on an F-16 EDF model yet! The sequenced and servo-operated gear doors feature molded details on the inside, and the nose gear door is also equipped with an LED landing light that turns on and off automatically when the gear is extended or retracted.

Construction with fully molded EPO material makes it possible to replicate complex details and shapes in a lightweight yet durable form. The result is an outstanding scale appearance that's easy to maintain and delivers the best possible flight experience. Plus, the plastic capped strakes, hatch edges and opening improve durability to prevent damage and paint chipping during handling and when installing/removing batteries.

Precise Control

Easy Assembly

A total of nine factory-installed digital, metal-geared servos, along with ball-link equipped linkages on all primary flight controls, deliver crisp, precise and reliable control at every speed.

No glue is required for assembly and you can have the F-16 ready to fly in less time than it takes to charge a battery! The stabs plus the two-piece wing bolt into place and can easily be removed for convenient storage and transport.

Customizable Trim Scheme

Decal sheets with four different choices of squadron markings are included so you can customize the factory-painted 3-tone gray finish. The choices include:

South Carolina Air National Guard (based at Shaw Air Force Base) 79th Fighter Squadron - Leader, 20th Fighter Wing, Tiger Meet Version

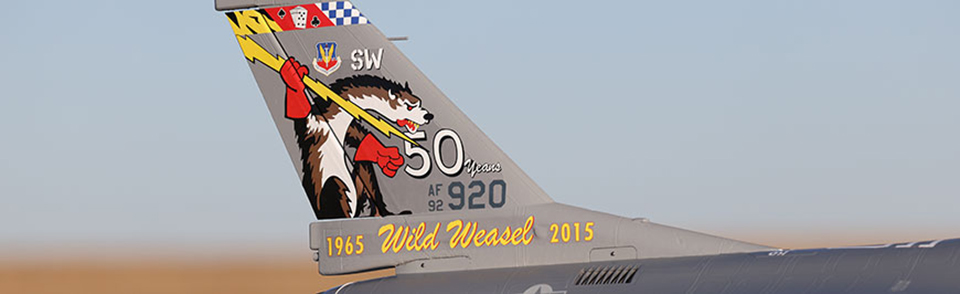

South Carolina Air National Guard (based at Shaw Air Force Base) 77th Fighter Squadron, 20th Fighter Wing, Wild Weasel 50th Anniversary Version
South Carolina Air National Guard (based at Shaw Air Force Base) 157th Fighter Squadron, 169th Fighter Wing (Swamp Foxes), Wild Weasels 50th Anniversary Version
Ohio Air National Guard (based at Ohio National Guard Base) 112th Fighter Squadron, 180th Fighter Wing, Stingers Version

Or you can apply paint and custom-made graphics to personalize the finish and trim scheme!

Product Specifications

Completion Level		Bind-N-Fly Basic
Charger		Sold Separately
Receiver		Included
Approximate Assembly Time		Less than 1 hour
Material		EPO
Power Type		Electric
Battery Sold		Separately
Retracts		Included
Servos		Included
Skill Level		Level 3
Motor Size		3280-2100Kv 4-pole Inrunner (installed)
Trim Scheme Colors		Grey, with 4 decal sets

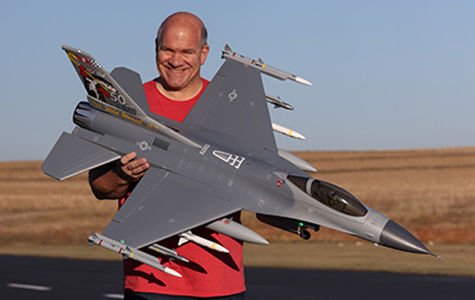

Product Length		57.08" (1450 mm)
Wingspan		39.37" (1000 mm)
Fan Size		80mm EDF
Speed Control		Included
Minimum Required Radio		At least 6-channel
Radio		Sold Separately
Technology		AS3X and SAFE
Product Weight		5.9 lbs (2665 g) without battery; 7.4 lbs (3375 g) with 6S 5000mAh 30C battery (sold separately)

SKU	EFL87850
Brand	E-Flite
Shipping Weight	6.6000kg
Shipping Width	0.430m
Shipping Height	0.290m
Shipping Length	1.300m
Shipping Cubic	0.162110000m3
