Product Details

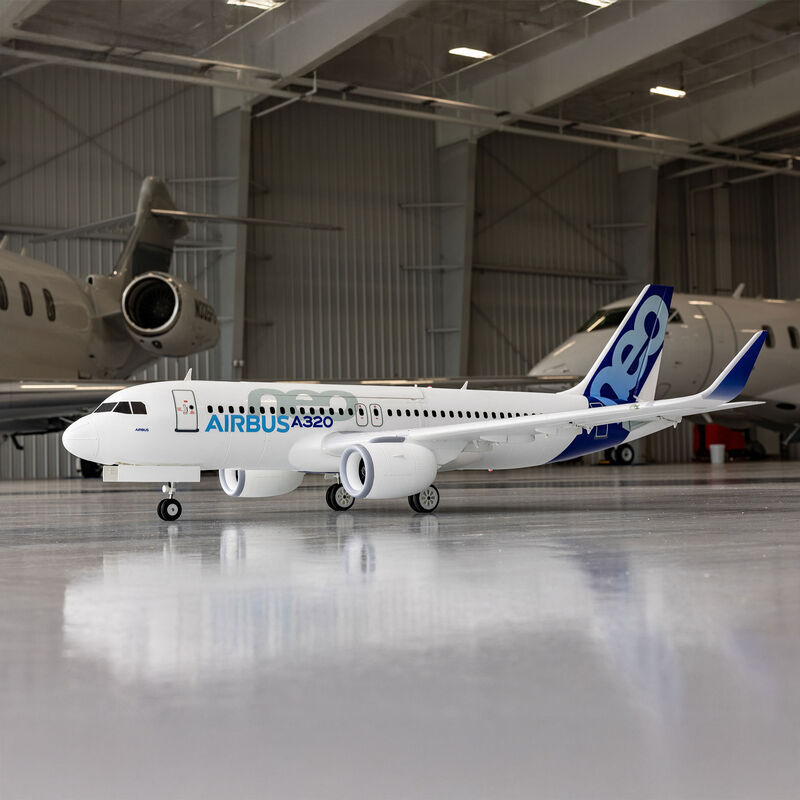

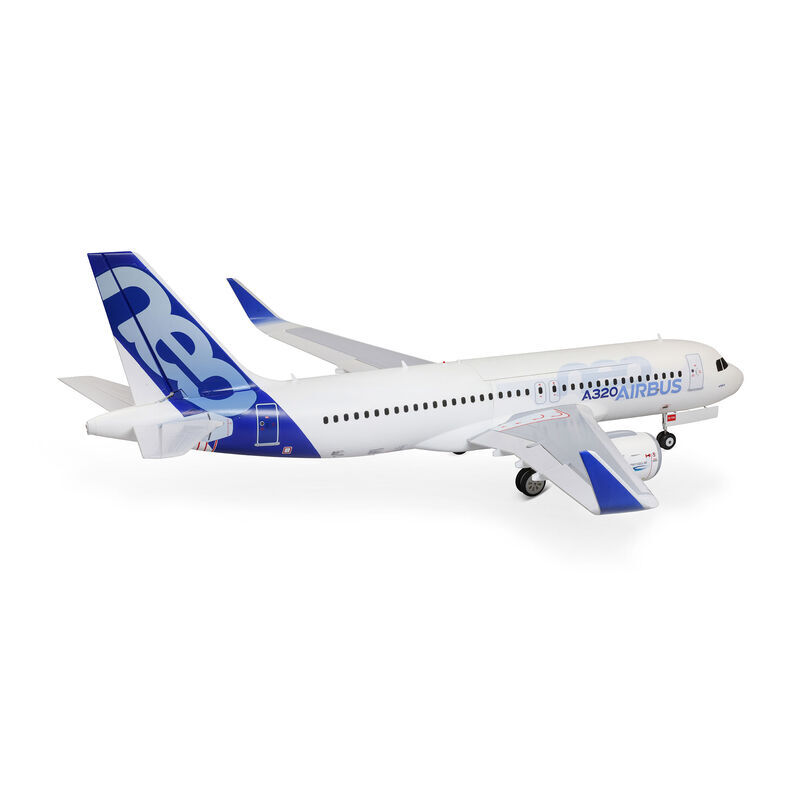

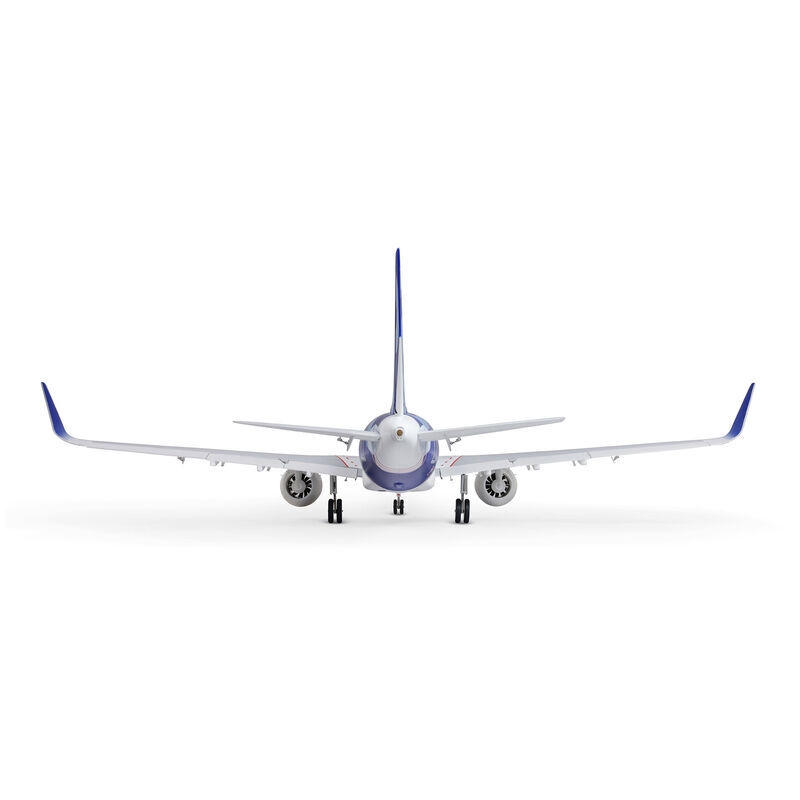

The E-flite Airbus A320neo Twin 64mm EDF is an officially licensed replica of one of the most popular airliners in the world today. It's packed with scale features and functions, plus it delivers unexpected performance and aerobatic capabilities to offer a unique flying experience you can't get with any other model!

Key Features

The easiest to fly and best handling high-performance airliner EDF (Electric Ducted Fan) jet model yet
Functional features including LED navigation, strobe and landing lights, operational flaps, retracts and nose gear doors
Unexpectedly wide performance envelope and speed range, capable of scale-like to surprisingly aerobatic flying
Fits 6S batteries from 3200–7000mAh to deliver a wide range of class-leading performance and flight times
Easier to fly with innovative and optional-use SAFE Select flight envelope protection

In The Box

(1) E-flite Airbus A320neo Twin 64mm EDF with:
(8) Spektrum Digital, Metal-Geared Servos (installed)
(2) Spektrum Brushless Outrunner Motors (installed)
(1) Spektrum Avian 40-Amp Dual Smart Lite Brushless ESC (installed)
(1) Spektrum AR637TA+ 6-Channel Receiver with AS3X+ and SAFE Select (installed)
(1) Product Manual

Needed to Complete

For Standard Functionality: (1) Full-range 6-channel Spektrum DSMX®/DSM2® compatible transmitter
For SAFE Select OR Motor/Thrust Reversing Functionality: (1) Full-range 7-channel Spektrum DSMX/DSM2 compatible transmitter
For SAFE Select AND Motor/Thrust Reversing Functionality: (1) Full-range 8+ channel Spektrum DSMX/DSM2 compatible transmitter
(1) 6S 22.2V 3200–7000mAh 30+C LiPo with EC5 or IC5 Connector
(1) Compatible LiPo charger

E-flite Airbus A320neo Twin 64mm RC Jet Airliner - Manual - English - Download

E-flite Airbus A320neo Twin 64mm EDF RC Jet Airliner Introduction

As the best-selling airliner of all time, the Airbus A320 is in service with many airlines worldwide. The "neo" (New Engine Option) versions feature advanced turbofan engines and wingtip devices known as Sharklets® to benefit from a 20% reduction in fuel burn compared to previous-generation aircraft for additional flight range and extra payload. Officially licensed by Airbus, the E-flite® A320neo Twin 64mm EDF replicates the now-iconic aircraft and features a variety of scale details and functions, including LED landing and navigation lights, flaps, and retractable landing gear. Its twin 64mm EDF power system delivers better-than-scale-like performance plus class-leading flight times with 6S 3200–7000mAh batteries. The "neo" livery and "base white" BNF Basic versions include a factory-installed receiver featuring enhanced AS3X+ technology, which smooths out the effects of wind and turbulence better than ever before. They also feature optional-use SAFE Select technology that makes it even easier to fly, along with motor/thrust reversing to help shorten rollout after landing and provide other special ground handling capabilities. All versions include factory-installed Spektrum digital and metal-geared servos, a dual Smart Lite ESC, and outrunner motors.

E-flite Airbus A320neo Twin 64mm EDF RC Jet Airliner Overview

Delivering a unique flying experience with unexpected performance and aerobatic capabilities, the E-flite® Airbus A320neo Twin 64mm EDF is the perfect first or next airliner model for intermediate to experienced RC pilots. Its twin 12-blade 64mm fans, high-RPM brushless motors, and 40-amp Spektrum™ Avian™ Dual Smart Lite ESC combine with your 6S 3200–7000mAh 30+C LiPo battery to deliver excellent vertical performance and level flight top speeds, plus longer than expected flight times for an EDF model. The Smart ESC provides real-time telemetry data about your power system while you fly, including overall battery voltage and more. It works with Smart and non-Smart batteries when using compatible receivers (like the AR637TA+ in the BNF® Basic versions) and Spektrum AirWare™ equipped transmitters. With a 7–8+ channel transmitter, it also offers optional use motor/thrust reversing to shorten rollout after landing and provide other special ground handling capabilities!

No glue is required for assembly, and the two-piece wing plus separate stabilizers install quickly and easily without tools so the A320neo can be ready to fly in almost no time. The lightweight, composite-reinforced EPO airframe is available factory-finished in Airbus' special "neo" livery that's fully painted with the decals already applied, or in a painted "base white" version with separate window and other decals that allows you to paint and/or add decals to customize the scheme with any airline or other livery you like! You can purchase pre-made or create custom liveries at Callie Graphics by visiting this link: horizonhobby.cc/a320callie

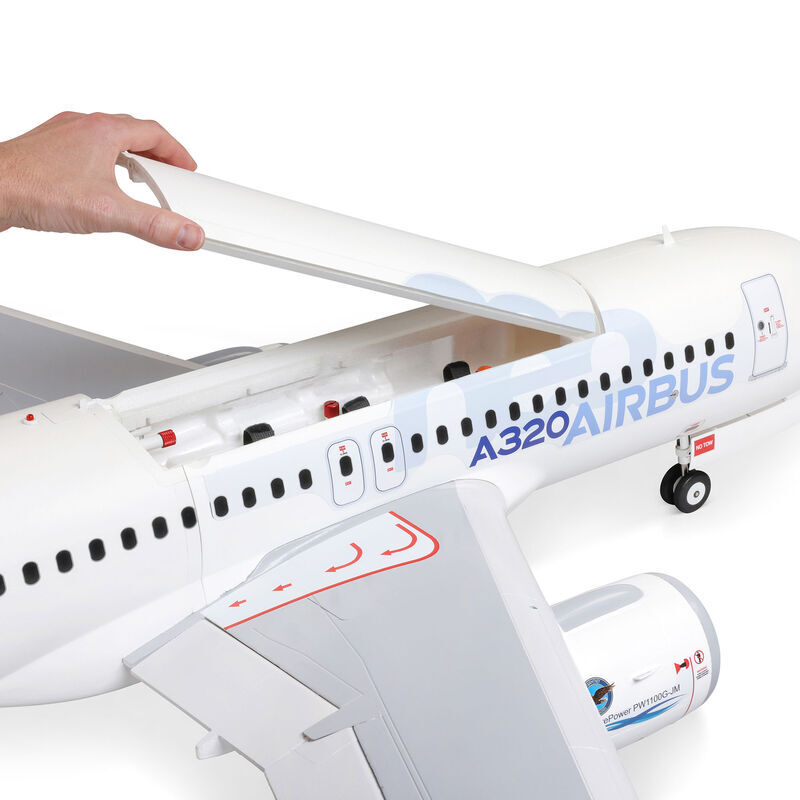

The large top hatch and opening have plastic-capped edges for improved durability to prevent damage and paint chipping when installing/removing batteries. Eight factory-installed digital and metal-geared servos with ball-link equipped linkages deliver precise and reliable control at every speed. Functional features include LED navigation, strobe and landing lights, operational flaps, and electric retracts with shock-absorbing struts so you can fly from a variety of paved, fabric, packed dirt, or grass surfaces. Various molded details, functional nose gear doors, and flaps add to the incredible scale looks and experience. It all adds up to deliver an airliner model sized for easier storage and transport while offering an unmatched flying experience you'll enjoy flight after flight!

E-flite Airbus A320neo Twin 64mm EDF RC Jet Video

E-flite Airbus A320neo Twin 64mm EDF RC Jet Airliner Features

Officially licensed by Airbus scale replica of the best-selling and iconic aircraft flown by numerous airlines worldwide

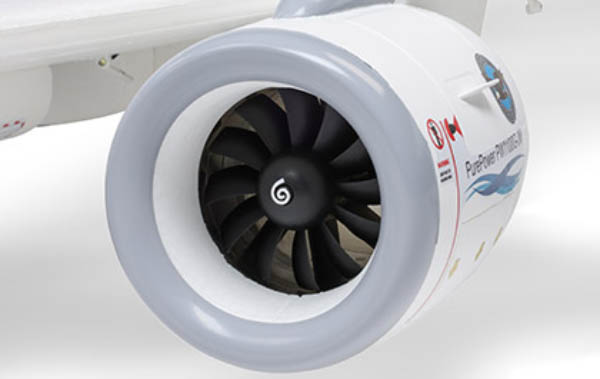

Twin 12-blade 64mm fans deliver excellent speeds, vertical performance and a turbine-like sound
40-amp Spektrum Avian Dual Smart Lite ESC provides real-time battery voltage and other data, plus reversing capabilities, via compatible transmitters (with Smart and non-Smart batteries)
Spektrum AR637TA+ receiver with full-range telemetry and industry-leading DSMX technology
Receiver loaded with a Smart Transmitter File that allows you to import all settings for NX and iX series transmitters during the binding process
The unmatched stability and locked-in feel of exclusive and enhanced AS3X+ technology
Eight factory-installed digital, metal-geared servos with ball-link equipped linkages

Electric retracts with shock-absorbing struts for operation from a variety of surfaces including grass
Optional-use motor/thrust reversing to help shorten rollout after landing and for other special ground handling capabilities
Convenient and large top hatch with plastic-capped edges for easy access to the battery compartment and receiver
Available with a factory-applied "neo" livery or in a "base white" version you can customize yourself
Two-piece wing with hands-free connections and thumbscrews for easier storage and transport
Lightweight yet strong and durable composite-reinforced EPO construction
Fast and easy assembly – no glue required

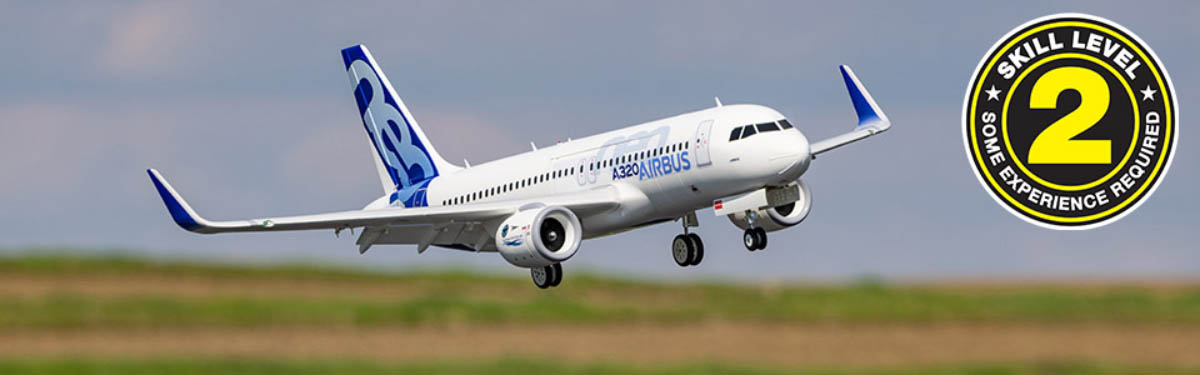

Skill Level 2 – Some Experience Required

Skill Level 2 aircraft, like this one, are suitable for RC pilots who already have some experience and the skills to assemble, set up, and fly similar class models. And although this is one of the easiest to fly airliner models yet, it's not a suitable first-ever RC aircraft for new pilots or first-ever EDF (Electric Ducted Fan) jet model for intermediate to experienced RC pilots. You should have the experience and skills necessary to successfully fly simpler EDF models like the E-flite Habu SS (Super Sport) 50mm or 70mm, or other scale jet models, before attempting to fly the BNF Basic versions of the Airbus A320neo Twin 64mm EDF.

Are you new to flying RC (Radio Controlled) aircraft? If you are, the A320neo Twin 64mm EDF is not a suitable first-ever RC model and we recommend learning to fly with one of our purpose-built trainer aircraft such as the E-flite® Habu STS (Smart Trainer with SAFE) 70mm EDF (www.horizonhobby.cc/HabuSTSRTF). It's equipped with exclusive and innovative SAFE technology that makes it possible for almost anyone to learn to fly successfully! The Ready-To-Fly (RTF) Basic version includes almost everything needed to fly (except for a compatible LiPo battery and charger that are sold separately, or together in a money-saving Powerstage bundle), and is a perfect choice if you're a new RC pilot.

Bind-N-Fly Completion Level Advantage

Already own a Spektrum™ transmitter? Bind-N-Fly (BNF) aircraft make getting into the air quickly and with the best control experience possible easier than ever. They come out of the box with the power system, servos, and a Spektrum 2.4GHz receiver installed, so all you need to do is bind the receiver to a compatible transmitter, finish any final assembly, and fly!

Smart Technology

The exclusive Spektrum Avian Dual Smart Lite ESC provides a variety of real-time power system-related telemetry data including overall battery voltage and more – with both Smart and non-Smart batteries – via compatible receivers (including the AR637TA+ installed in the BNF Basic versions) and Spektrum AirWare equipped transmitters (including the DX6e and 8e, DX6 G2/3 and 8 G2, the DX9, NX6 to 20, iX12 to 20 and others) while you fly. Plus, optional-use motor/thrust reversing can help shorten rollout after landing and offers other special ground handling capabilities (7–8+ channel transmitter required for reversing).

Exclusive Technologies

The BNF Basic versions of the A320neo Twin 64mm EDF are equipped with exclusive Spektrum AS3X+ and SAFE Select technologies. Enhanced AS3X+ technology works behind the scenes to smooth out the effects of wind and turbulence and deliver an even more locked-in feel than standard AS3X, which makes it seem like you're flying a much larger airplane. Optional-use SAFE Select offers pitch and bank angle limits and automatic self-leveling that can be turned on and off at the flip of a switch! If you don't want to enable the SAFE Select features, simply bind the receiver normally, and only AS3X+ will be active. The receiver is also loaded with a Smart Transmitter File (STF) that allows you to import all the settings for NX and iX series transmitters during the binding process to be ready to fly in less time than ever!

High Performance

The twin 12-blade 64mm fans, high-RPM brushless motors and dual 40-amp Smart Lite ESC combine with your 6S 3200–7000mAh 30+C LiPo battery to deliver excellent vertical performance and a fantastic speed range with virtually instantaneous throttle response. This power system also delivers better performance and longer flight times than the 6S-compatible power systems used in other airliner models.

Easy Assembly

Livery Options

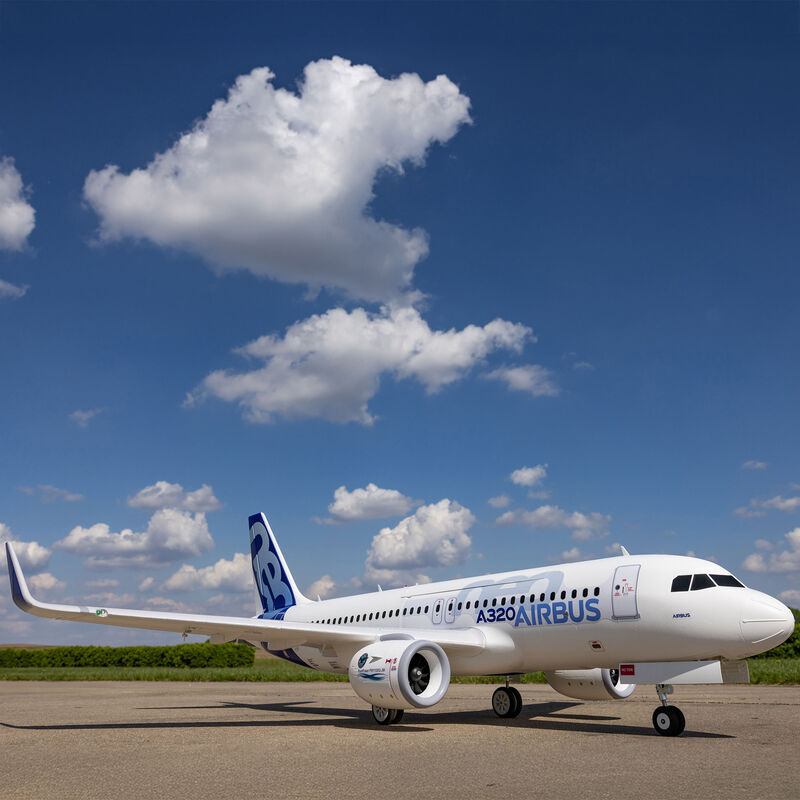

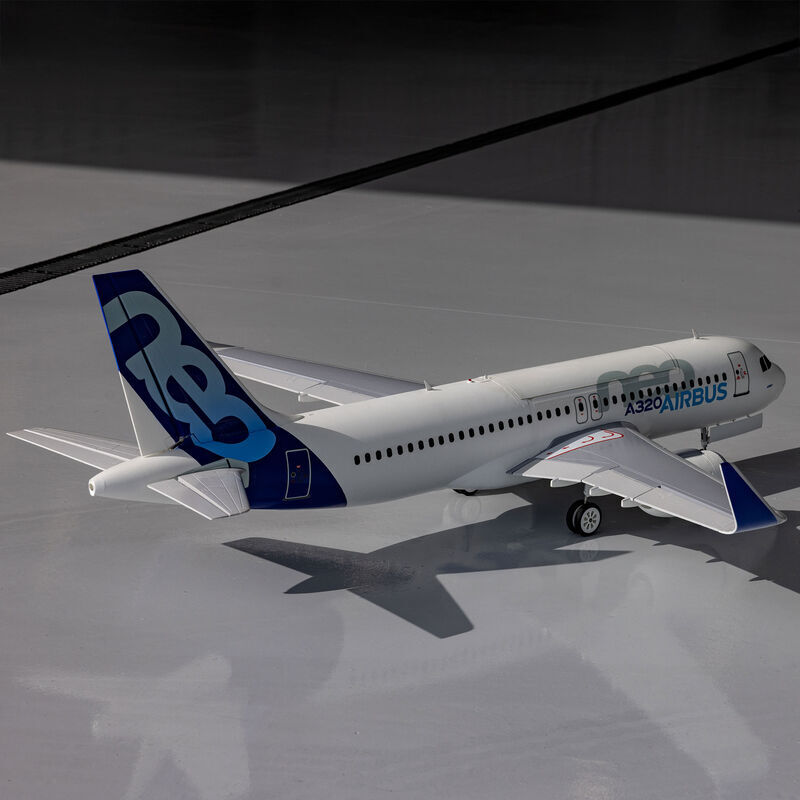

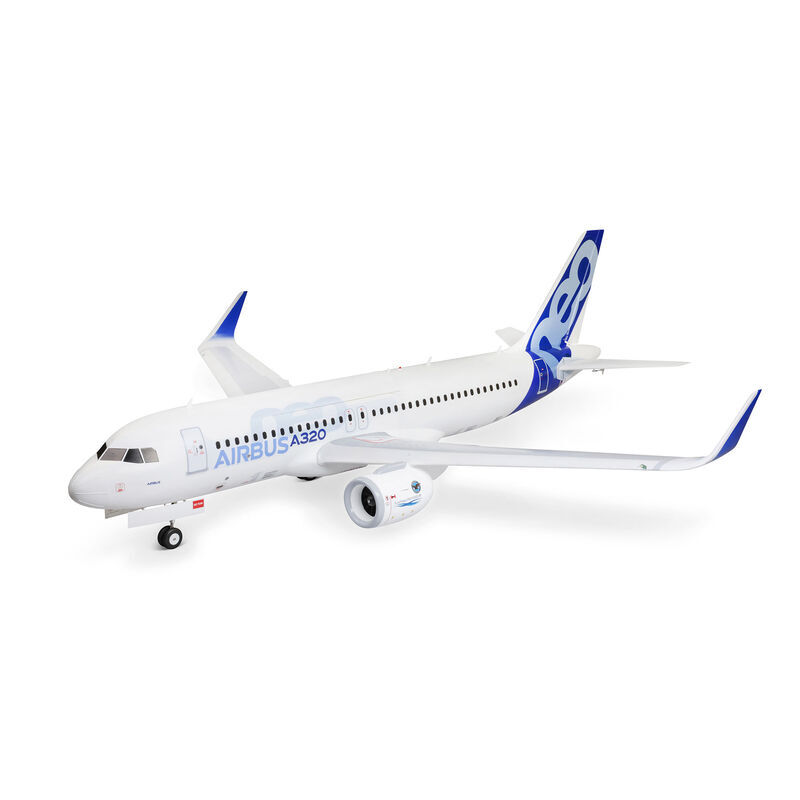

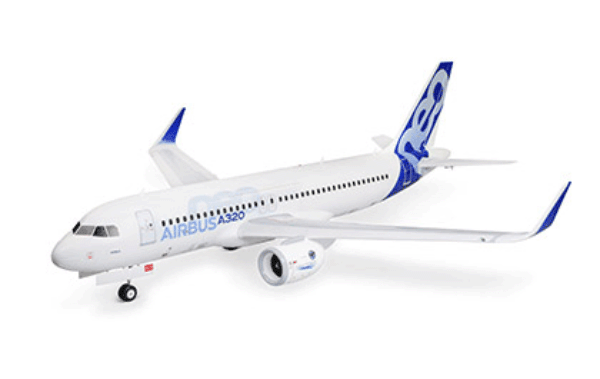

The A320neo Twin 64mm EDF is available factory-finished in Airbus' special "neo" livery that's fully painted with the decals already applied. Or, in a painted "base white" version that includes separate window and other decals so you can customize the scheme with any airline or other livery you like! You can purchase pre-made or create custom liveries at Callie Graphics by visiting this link: horizonhobby.cc/a320callie

Capable Gear

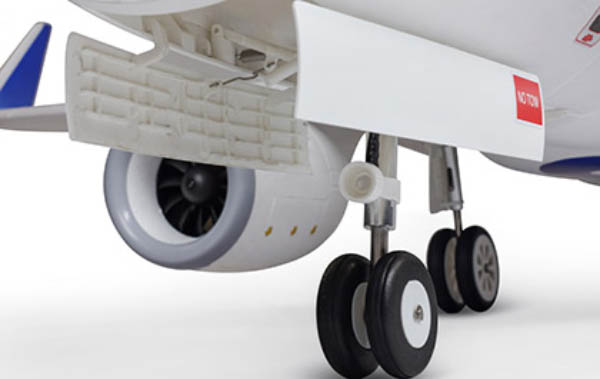

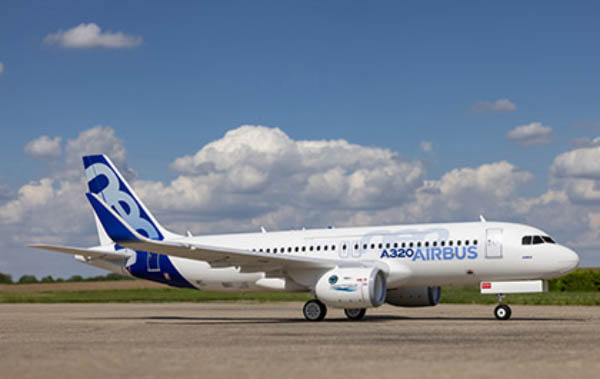

The factory-installed electric retracts are equipped with durable metal components including shock-absorbing struts that make it possible to fly from a variety of surfaces including paved and fabric runways, packed dirt and some grass fields. Wide-spaced main gear plus a steerable nose wheel, all with dual wheels, offers excellent ground handling.

Durable Precision

Construction with fully molded and composite-reinforced EPO material makes it possible to replicate complex detail and shapes in a lightweight yet durable form. The result is an outstanding scale appearance that's easy to maintain and delivers the best possible flight experience. Plus, the eight factory-installed digital, metal-geared servos with ball-link equipped linkages deliver crisp and precise control at every speed.

Extra Convenience

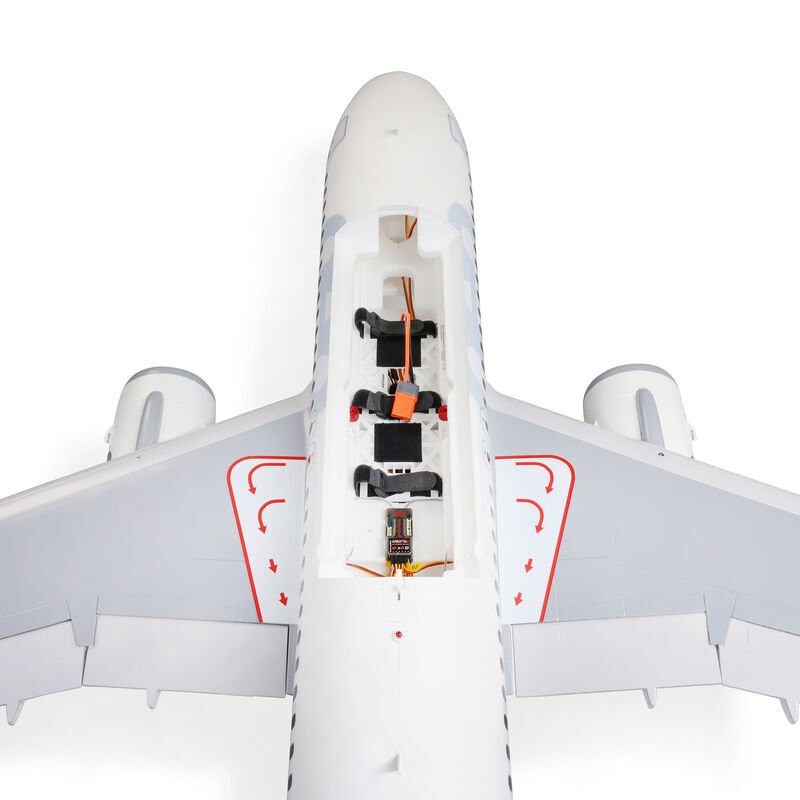

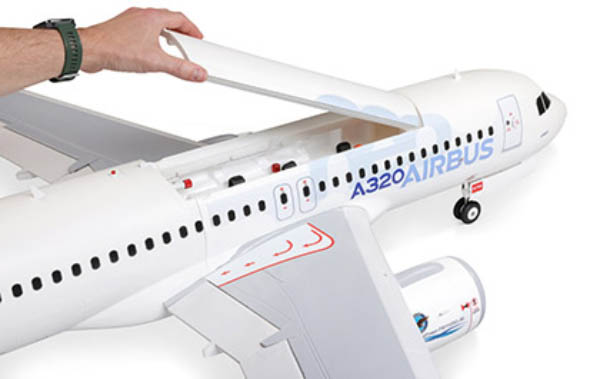

The two-piece wing is easy to install and remove for storage and transport thanks to the innovative hands-free connection system and thumbscrews so no tools are required. Those thumbscrews are accessed through the large top-mounted hatch and opening – with plastic-capped edges to protect the painted finish – that make it quick and easy to install and remove batteries.

Easy Assembly

No glue is required for assembly and you can have the A320neo Twin 64mm EDF ready to fly in less time than other airliner models! The two-piece wing with hands-free connections is easy to install or remove quickly with thumbscrews for more convenient storage and transport. And the separate horizontal and vertical stabilizers simply snap into place securely without the need to use any tools or fasteners.

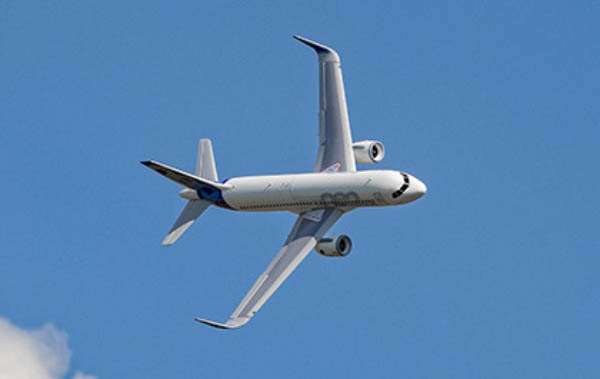

Unexpected Capabilities

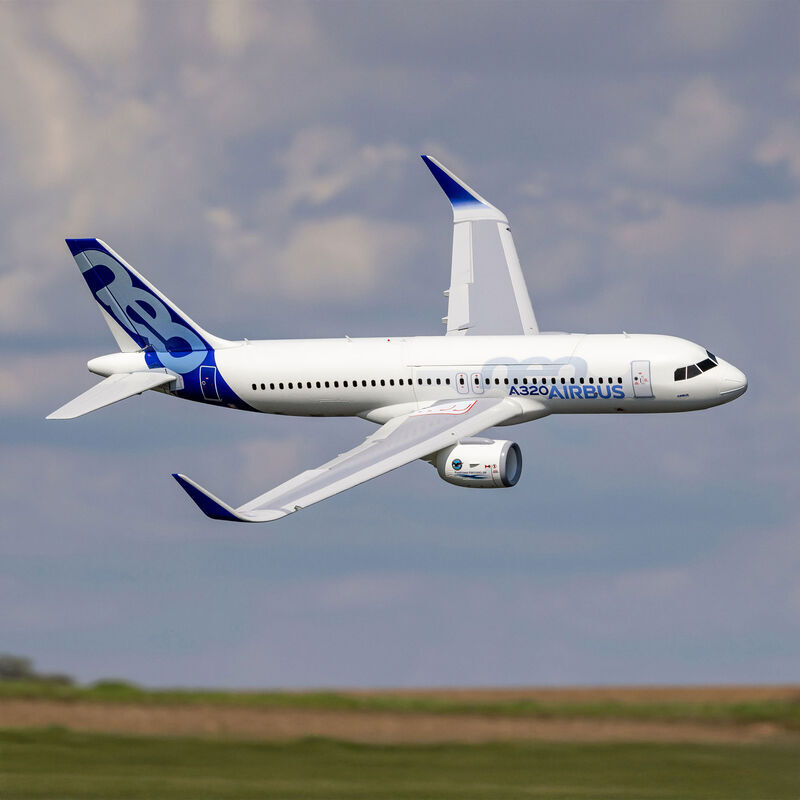

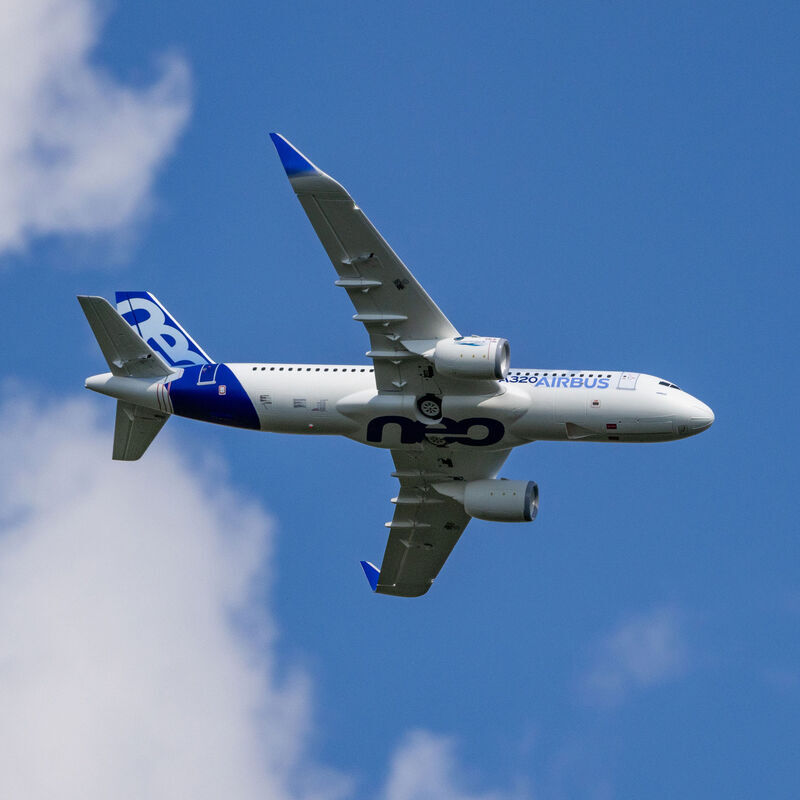

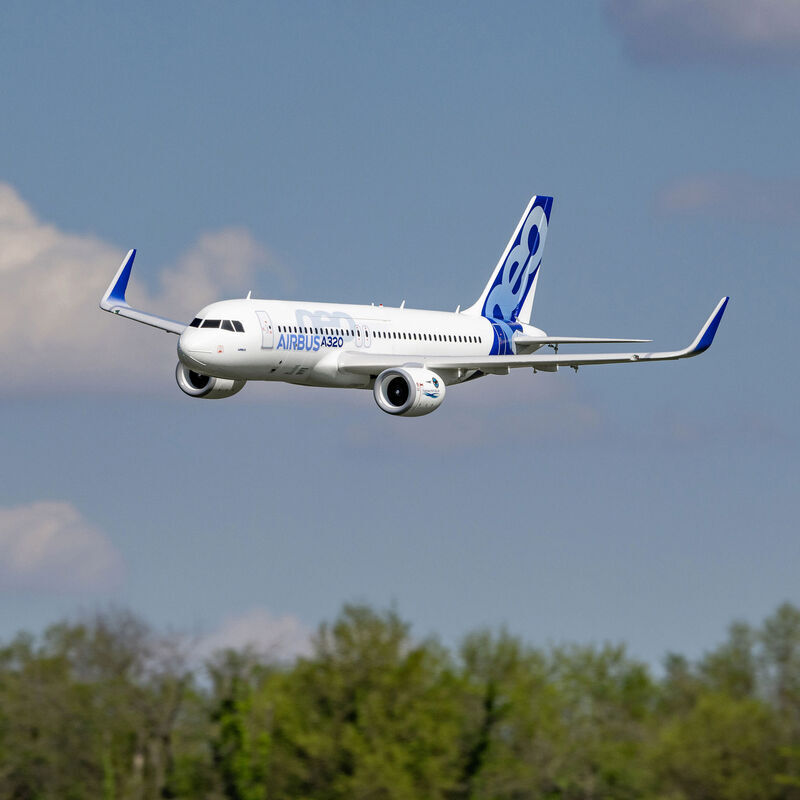

The A320neo Twin 64mm EDF offers incredible handling across a wide speed range and flight envelope. From slow and scale-like flying to high-speed flybys, the airframe and power system combine to deliver unexpected performance and aerobatic capabilities so you can also perform giant loops, rolls, and other maneuvers depending on how you'd like to fly it.

Functional Features

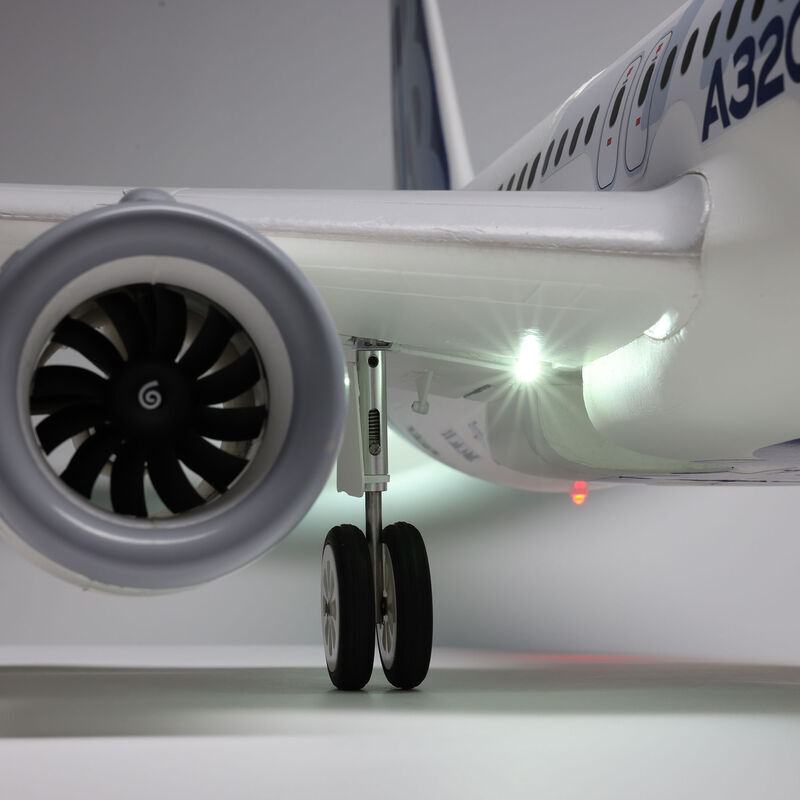

The factory-installed flaps offer improved slow-flight capability and performance while also making it possible to take off and land in shorter distances and at slower speeds. It's also equipped with LED navigation, strobe and landing lights for improved visibility and orientation.

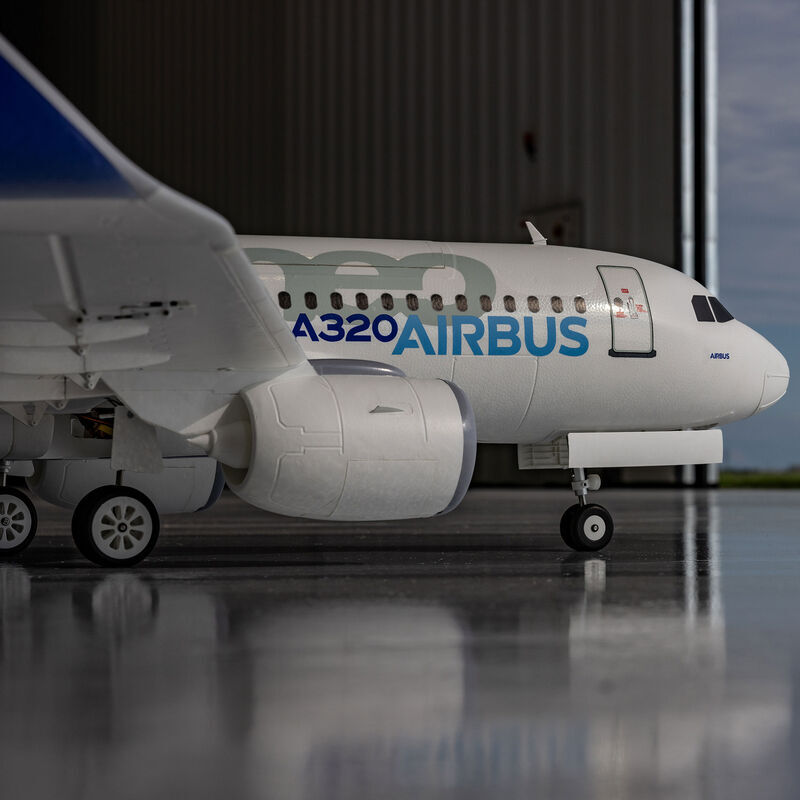

Scale Details

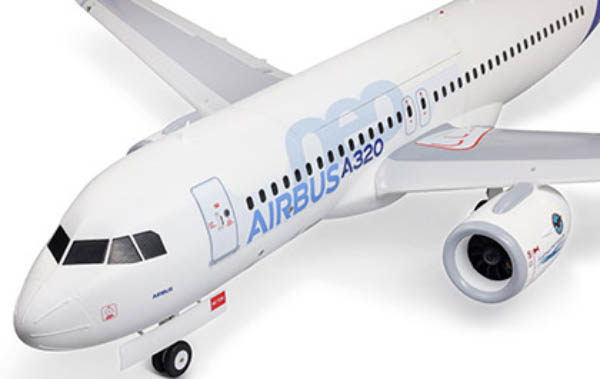

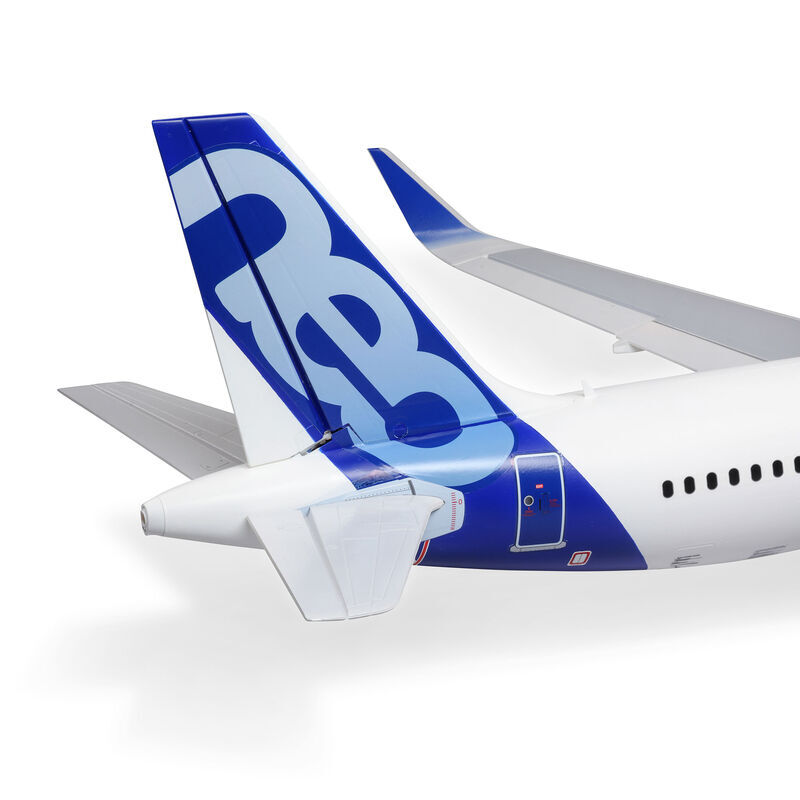

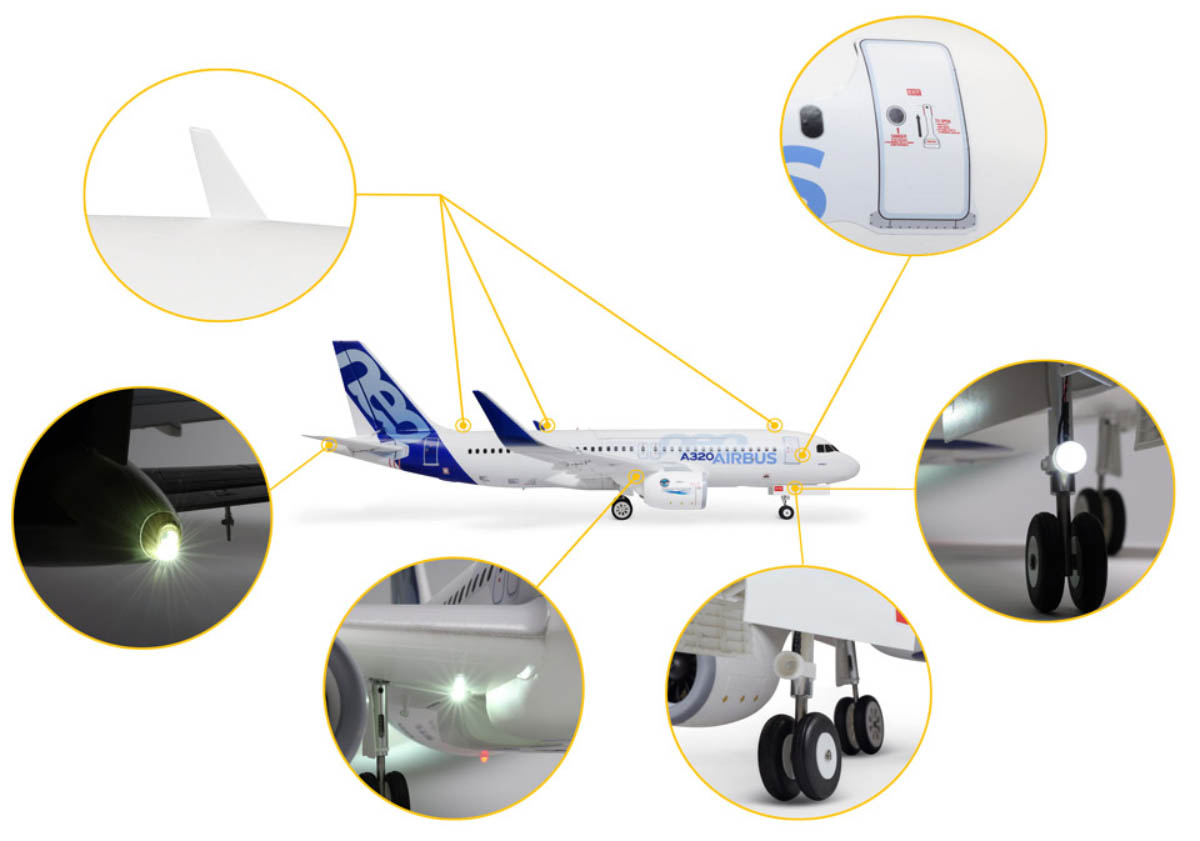

An accurate outline and an abundance of details including molded-in panel lines and doors, removable antennas, and more to enhance your scale experience.

Product Specifications

Approximate Assembly Time	Less than 1 hour
Battery	Sold Separately
CG (Center of Gravity)	150mm (140–170mm) Forward from trailing edge of wing
Charger	Sold Separately
Completion Level	Bind-N-Fly Basic
Connector Type	IC5
Fan Size	64mm EDF
Flaps	Yes
Lighting	LED Navigation and Landing Lights
LiPo Compatibility	6S
Material	EPO
Minimum Required Radio	Full Range 6-8+ Channel 2.4GHz w/ Spektrum DSM2/DSMX® Technology
Minimum Speed Control	Spektrum™ Avian™ 40A Dual Smart Lite Brushless
Motor Size	2840-1900Kv
Motor Type	Brushless
Power Type	Electric

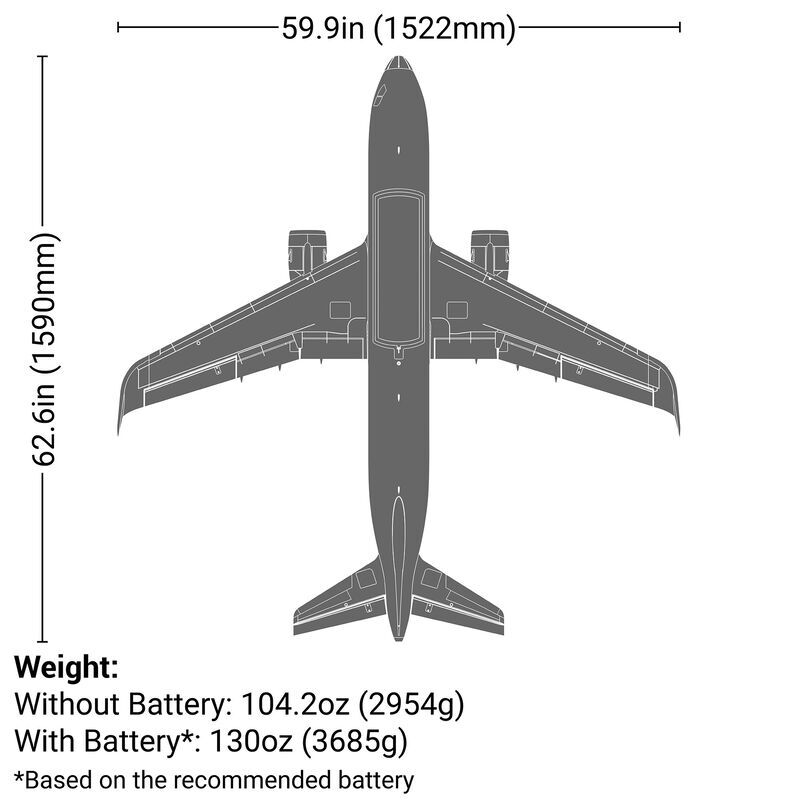

Product Length	62.2" (1580 mm)
Product Weight	Without Battery: 104.2oz (2954g) / With Recommended 6S 5000mAh Battery: 130oz (3685g)
Radio	Sold Separately
Receiver	Included
Recommended Motor Battery	6S 22.2V 3200–7000mAh 30+C LiPo with EC5 or IC5 Connector
Retracts
Included	Servos Included
Skill Level	Level 2
Speed Control	Included
Technology	AS3X+, SAFE Select, Smart
Trim Scheme Colors	Factory blue "neo" scheme
Wingspan	59.9" (1521 mm)

SKU	EFL-1493
Barcode #	0660132644185
Shipping Weight	7.0000kg
Shipping Width	0.400m
Shipping Height	0.300m
Shipping Length	1.200m
Shipping Cubic	0.144000000m3
