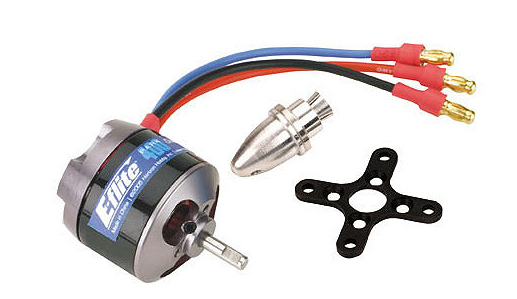

Park 400 Brushless Outrunner Motor, 740Kv E-flite (EFLM1300)
SKU code: EFLM1300
$89.99
More infoMake 4 interest-free payments of $22.50 fortnightly and receive your order now.
Key Features
- Slotted 12-pole outrunner design
- Prop adapter (EFLM1923) and gold-plated connectors included
- Excellent motor for small 3D and scale park flyers weighing 10–20 oz (280–560 g)
- Motor mount included
- Replacement for Speed 370 and Speed 400 applications
- Quiet operation\low noise compared to gearbox systems
Needed To Complete
10–20A brushless ESC
10x7 to 12x3.8 prop
7.4V or 11.1V 860–1320mAh Li-Po
Overview
The great performance and small size of this engine makes it perfect for small 3D and other park flyer models. The external rotor design eliminates the need for a gearbox, saving you valuable weight to get the maximum performance out of the model.
Specs
| Application: | Airplane |
|---|---|
| Bearings or Bushings: | One 3.175 x 7.94 x 3.6 Bearing and One 3.175 x 9.525 x 3.97 Bearing |
| Cells: | 6–10 Ni-Cd/Ni-MH or 2–3 Li-Po |
| Continuous Current: | 0 - 10A |
| Diameter: | 1.1 in (28mm) |
| Idle Current (Io): | .55 @ 10V (no load current) |
| Maximum Burst Current: | 10A |
| Motor Design: | Outrunner |
| Overall Diameter: | 1.10 in (28mm) |
| Overall Length: | 1.15 in (29mm) |
| Power Plant Size: | 300-400 Electric |
| RPM/Volt (Kv): | 740 (rpms per volt) |
| Recommended Prop Range: | 10x4.7-12x3.8 |
| Resistance (Ri): | .26 ohms |
| Shaft Diameter: | 1/8 in (3.17mm) |
| Size: | Replacement for 370/400 |
| Speed Control: | 10–20 amp brushless |
| Type: | Brushless |
| Voltage: | 7.2–12 |
| Weight: | 56 g (2.0 oz) |
| SKU | EFLM1300 |
| Barcode # | 0605482772324 |
| Brand | E-Flite |
| Shipping Weight | 0.2000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.080m |
| Shipping Length | 0.100m |
| Shipping Cubic | 0.000800000m3 |
