Key Features

  • Perfect for 6- to 12-pound (2.7- to 5.4-kilogram) airplanes
  • High torque, direct drive alternative to brushless inrunner motors

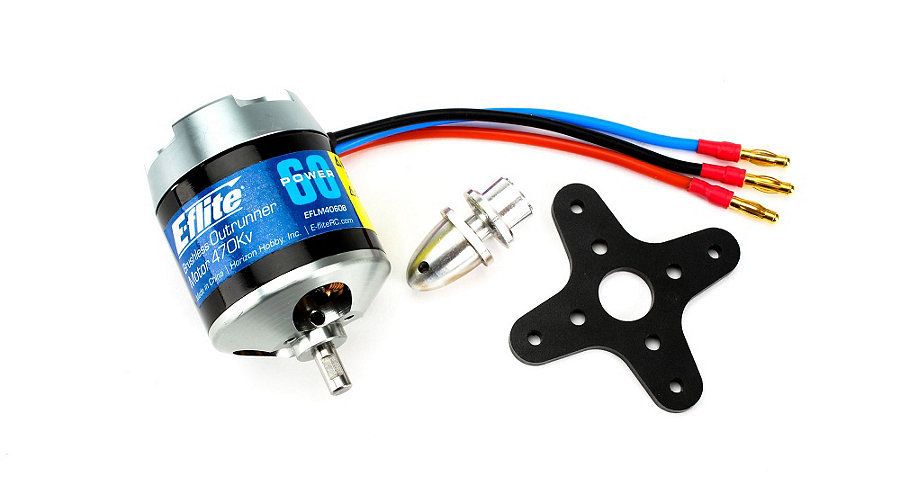

  • Includes mount, prop adapter and mounting hardware
  • Quiet, efficient operation
  • External radial rotor design

Overview

Designed for high power applications, this 6S motor is ideal for 60-sized planes, or models that require up to 1800 watts of power.



Specs

Type: Brushless outrunner
Size: Replacement for 60-size glow engines
Sensored: No
Bearings or Bushings: One 6 x 15 x 5mm bearing and two 6 x 12 x 4mm bearings
Wire Gauge: 14 AWG
Connector Type: 4mm bullet
Recommended Prop Range: 15 x 8 - 17 x 7 electric propeller
Voltage: 22.2V (6S LiPo, 4400-5000mAh)
RPM/Volt (Kv): 470Kv
Resistance (Ri): 0.02 ohm
Idle Current (Io): 2.1A @ 20V
Maximum Burst Current: 80A for 15 seconds
Recommended Speed Control: 80A brushless
Weight: 13.0 oz (380 g)
Overall Diameter: 2.00 in (50mm)
Shaft Diameter: 0.24 in (6.0mm)
Overall Length: 2.40 in (62mm)
Power Plant Size : 60-110 Electric
Motor Application: Airplane
Motor Design: Outrunner
Continuous Current: 51A +
SKU EFLM4060B
Barcode # 0605482107980
Brand E-Flite
Shipping Weight 0.2000kg
Shipping Width 0.100m
Shipping Height 0.080m
Shipping Length 0.100m
Shipping Cubic 0.000800000m3
