O.S. Motor Mount 46/55AX O.S. 71913100

Phone (07) 31033011 Between - 9:30am - 4:30pm

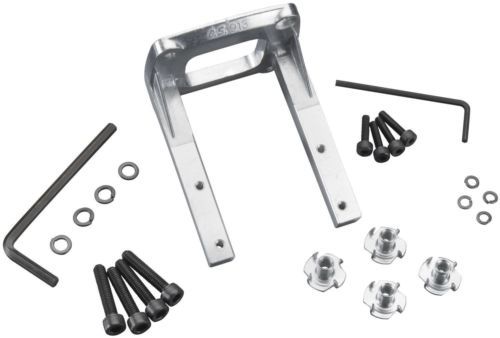

This is a motor mount drilled and tapped to fit the O.S.
(2-stroke) 40SF, 40SF-S, 46SF, 46SF-S, 40VF, 46VF
Includes all hardware necessary for mounting the engine to a firewall and
mounting the engine to the engine mount. The nose gear hole is not pre-drilled

INCLUDES

Four M3.5x16 engine mounting screws (secures the engine to mount)
Four lock washers (for the engine mounting screws)
Four blind nuts (they fit into the firewall)
Four M4x20 motor mount screws (secures the mount to firewall)
One L-wrench for the screws

SPECIFICATIONS

Type of Material: All Aluminum mount with Steel screws and washers
Type of Mount: Beam style mount with a square shaped back
Overall Length: 66.5mm (2.6")
Overall Width: 55.7mm (2.2")
Height: 55.2mm (2.2")
Useable Beam Length: 44mm (1.7")
Width from center of mounting hole to center of mounting hole: 44mm
Distance from the back of mount to center of mounting holes:
36mm (1.4") rear hole
53.5mm (2.1") front hole
snew 06/15/00

SKU	OSM71913100
Barcode #	4531028601222
Brand	OS Engines
Shipping Weight	0.2000kg
Shipping Width	0.100m
Shipping Height	0.080m
Shipping Length	0.100m
Shipping Cubic	0.000800000m3
