Futaba R2008SB S.Bus 8-Channel S-FHSS Receiver

Phone (07) 31033011 Between - 9:30am - 4:30pm

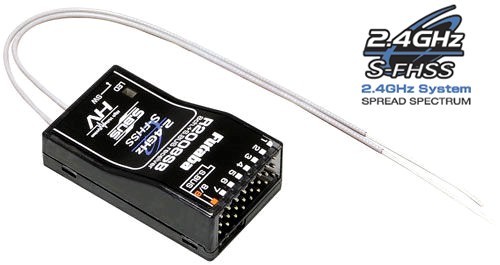

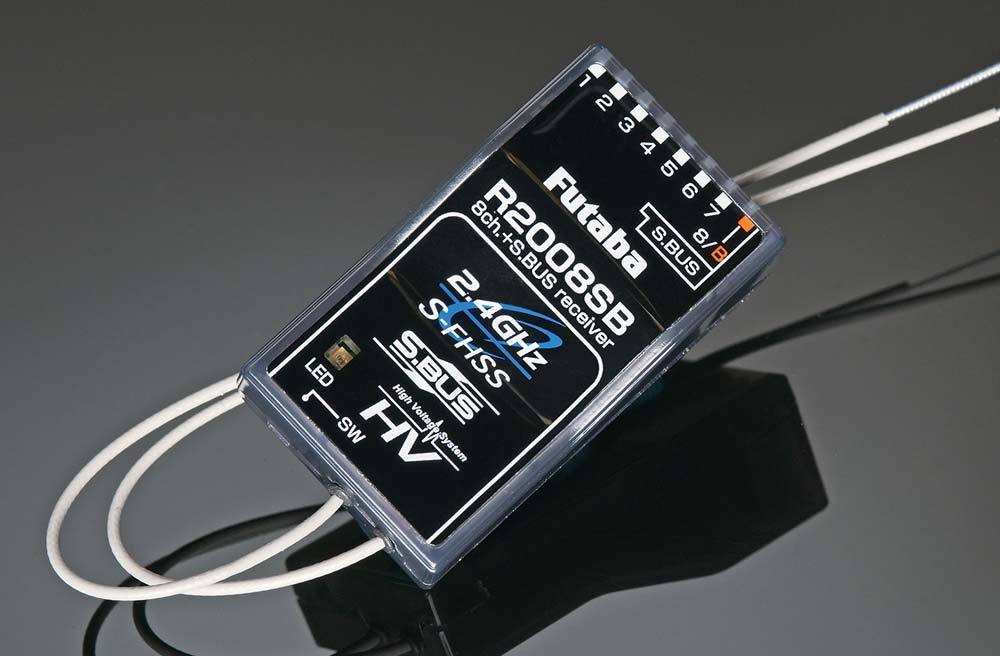

This is the R2008SB 2.4GHz S.Bus S-FHSS 8 Channel Receiver
for use with the Futaba 8J 2.4GHz Computer Radio System.

FEATURES

For aircraft models
Dual Antenna Diversity
High voltage operation (4.8 - 7.4V)
Frequency hopping Spread Spectrum design
S.Bus system output port and conventional system channel outputs,
may also be used with conventional (non S.Bus) system servos
One year limited warranty through Hobby Services beginning at date of
purchase

INCLUDES

R2008SB 2.4GHz S.Bus S-FHSS 8 Channel Receiver with Instruction Sheet

SPECIFICATIONS

Modes: S-FHSS or FHSS
Voltage Input: 4.8V-7.4V battery or regulated output from ESC
Capable of 4 channels only in FHSS mode
Compatible Batteries: NiCd, NiMH, LiPo, LiIon or LiFe
Dimensions: 0.98 x 1.69 x 0.55 in (24.9 x 42.8 x 14.0 mm)
Weight: 0.34 oz (9.5 g)

SKU	FUTR2008SB
Brand	Futaba
Shipping Weight	0.2000kg
Shipping Width	0.100m
Shipping Height	0.080m
Shipping Length	0.100m
Shipping Cubic	0.000800000m3
