CC BEC Pro (Battery Eliminator Circuit) is a small device that eliminates the need for a receiver battery. It draws voltage from the motorbatteries and drops it to a voltage level that is suitable for your receiver and servos. This is required in applications which use highpower servos, where the ESC does not have an internal BEC, or the existing BEC is inadequate.

The CC BEC Pro is designed to operate at up to 12S LiPo (50.4V) with a 20A* peakservo load. Generally used for 1/5 scale cars or cars utilizing multiple high powered digitalservos, lights, winches and other accessories. It is also useful in larger airplanes using 4 or more digital servos. Perfect for 500 size or larger helis.



Technical Specs
Max Amps:

20 amps peak*
Max continuous current*
16V input = 15A
24V input = 13A
32V input = 11A
40V input = 9A
48V input = 8A

Max Input Voltage: Cars: 8s (33.6V)
Airplanes: 10s (42V)
Helicopters (Airplane with brake disabled): 12s (50.4V)
Adjustable Output Voltage**: 4.8V to 12.5V
(Factory default voltage: 5.1V)

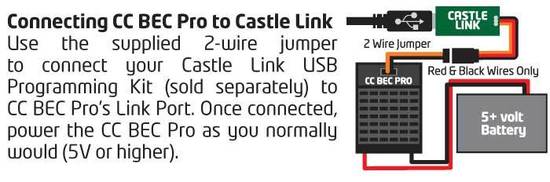

**Voltage must be changed via Castle Link (sold separately)
Size: Width: 1.30" (33mm)
Length: 1.86" (47mm)
Depth: 0.86" (22mm)
Weight: 1.0 oz. (29g) without wires
Connectors: N/A
Items Needed for Operation: Battery connectors (sold separately)

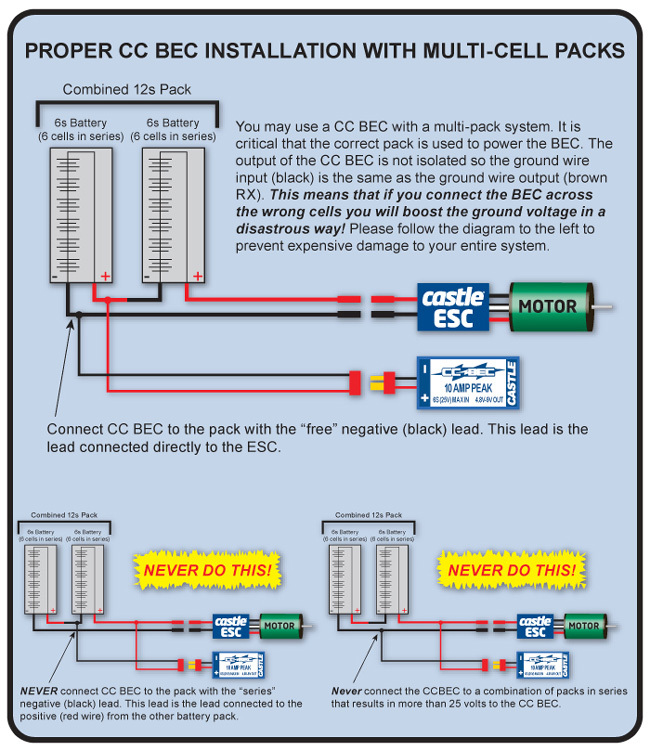

Product Use Statements: Read all wiring diagrams and usage advisories before using CC BEC Pro; PDF versions of the included manuals can be found on our support site. Not intended for use in wet conditions, BEC is not waterproof.
Application Guidelines: Generally used for 1/5 scale cars or cars utilizing multiple high powered digital servos, lights, winches and other accessories. It is also useful in larger airplanes using 4 or more digital servos. Perfect for 500 size or larger helis.
Programmability: Yes, output voltage can be changed via Castle Link (sold separately)
Telemetry Link Capable: N/A
Tech Notes: *Ratings are determined with a 5mph airflow on the BEC
